Newall DP500 DRO Lathe Packages

Newall’s DP500 Digital Readout Systems set the standard for reliability, value and ease of use for turret mills and tool room lathes. The DP500 DRO Mill and Lathe Packages include Newall’s Spherosyn LT or Microsyn LT encoders which are designed to provide accurate readings even under the toughest shop conditions.

The DP500 DRO Packages are available in two or three axes for turret mills with travels up to 406mm x 915mm and for two axes lathes with up to 2 meters between centers.

All the DP500 DRO Packages offer the same quality and benefits that Newall is known for. The DP500 Packages come with the new Spherosyn LT or Microsyn LT encoders. These encoders feature the same inductive technology and IP67 rating as Newall’s Spherosyn 2G encoders and will provide accurate and dependable readings under the harshest environmental conditions.

Features include:

  • Bolt Hole Circle Routine
  • Tool Offsets
  • Absolute/Incremental Readings
  • Inch/Metric Instant Conversion
  • Radius/Diameter Readings
  • Switchable Resolutions
  • Datum Preset/Zero Reset
  • Reference Point (Digifind)
  • Center Find

The Newall Advantage

  • Backed by a company with over 30 years of proven reliability in manufacturing DRO systems
  • Encoders carry an IP67 rating – All electronic and measuring components are sealed from the environment.
  • Continually provides accurate readings even under the harshest shop conditions
  • No cleaning or maintenance required
  • Tolerant to shock and vibration
  • No glass to break or scratch

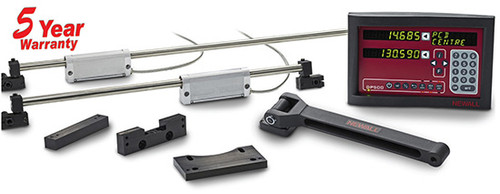

All DP500 packages include everything required for a complete installation:

  • DP500 DRO (2 or 3 axis)
  • Spherosyn LT and/or Microsyn LT Encoder Assemblies with 3.5M armored cable
  • Scale Bracket Kit and Hardware
  • Reader Head Mounting Brackets and Hardware*
  • Display Mounting Arm and Hardware*

*All packages are available with or without mounting brackets for the reader head and mounting arm.
