Newall DIGITAL READOUT PACKAGES FOR YOUR MILLING MACHINE

Brand:

(No reviews yet) Write a Review


Newall’s DP500 Digital Readout Systems set the standard for reliability, value and ease of use for turret mills and tool room lathes. The DP500 DRO system includes Newall’s Spherosyn LT or Microsyn LT encoders that are designed to provide accurate readings even under the toughest shop conditions.

Features Include:

  • Bolt Hole Circle Routin
  • Tool Offsets
  • Absolute/Incremental Readings
  • Inch/Metric Instant Conversion
  • Radius/Diameter Readings
  • Switchable Resolutions
  • Datum Preset/Zero Reset
  • Reference Point (Digifind)
  • Center Find

The Newall Advantage

  • Backed by a company with over 30 years of proven reliability in manufacturing DRO systems
  • Encoders carry an IP67 rating – All electronic and measuring components are sealed from the environment.
  • Continually provides accurate readings even under the harshest shop conditions
  • No cleaning or maintenance required.
  • Tolerant to shock and vibration.
  • No glass to break or scratch.

*Reader head Mounting Bracket Kit

Two axes packages include BPK01-M and KBK01-M

Three axes with quill will include BPK01-M and 600-65480 Quill kit.

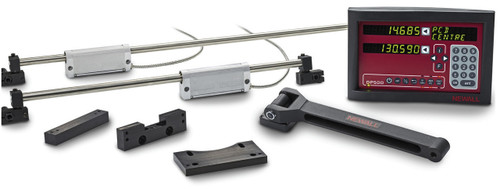

Configuration A Includes:

-DP500 Digital Readout

-Spherosyn LT Scales (3 ax package with quill includes Microsyn LT)

-Scale guards

-LT Reader Heads

-Scale Support Brackets

-Reader Head Mounting Bracket Kit*

-Display Mounting Arm # 600-84110
