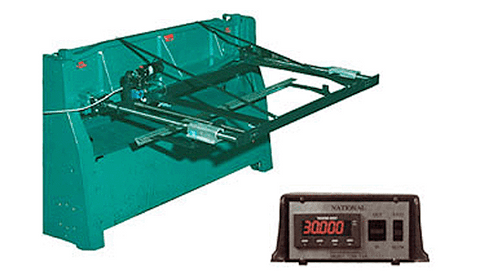

Front Operated Digital Back Gauges for National Hydraulic Shears

Brand:

Call for Pricing

(No reviews yet) Write a Review

National

Front Operated Digital Back Gauges for National Hydraulic Shears


for use with National Hydraulic Shears


Features:

  • L.E.D. CONTROL
  • Precision digital front operated back gauge
  • Control panel located out of the work area, yet convenient for the operator.
  • Precision Thomson bearings
  • Max travel 30”/762mm
  • Precision reliable repeatability improves cutting accuracy.
  • Shipped assembled for easy mounting
  • Digital readout in increments of one thousandth of an inch
  • No memory loss due to power failure
  • Easy mounting, can be retrofitted to any National Shear


Specifications:

Model NBG36 NBG52 NBG48
Floor Space
(l x w x h)
36" x 44" x 16-1/2"
915 x 1118 x 419mm
5-11/4" x 44" x 16-1/2"
1302 x 1118 x 419mm
51-1/4" x 48" x 19"
1302 x 1219 x 483mm
Shipping Weight 300 lbs / 136 kgs 340 lbs / 154 kgs 380 lbs / 172 kgs
Travel 30" / 762mm 30" / 762mm 30" / 762mm



Model NBG72 NBG96 NBG120
Floor Space
(l x w x h)
72" x 48" x 19"
1829 x 1219 x 483mm
81" x 48" x 19" 88" x 48" x 19"
Shipping Weight 480 lbs / 218kgs 580 lbs / 261 kgs 680 lbs / 306 kgs
Travel 30" / 762mm 30" / 762mm 30" / 762mm
