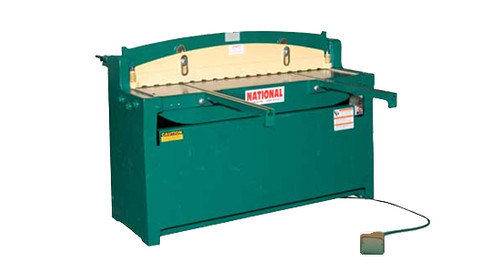

National Hydraulic Shears


National heavy duty power shears are equipped with a fully integrated hydraulic unit. Complete with electrical hydraulic valve, pilot operated-pressure relief valve, heavy duty foot switch that allows this unit to return to the top of the stroke when the operator removes his foot from the foot switch.

  • Heavy duty double acting cylinders
  • Fully enclosed control panel
  • The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator
  • Steel side frames, all steel cutter heads and tables with solid 4-edge high carbon high chromium blades
  • Quick adjusting back gauge for direct reading with a positive lock
  • Standard with table gauges and front arm extensions


Specifications:

Model NH3612 NH5216 NH5212 NH5210
Capacity
(Tensile
Strength
55,000 lbs. @
rated capacity)
Mild Steel
12 Gauge: 2.7mm
Stainless Steel
16 Gauge: 1.6mm
Mild Steel
16 Gauge: 1.6mm
Stainless Steel
20 Gauge: .9mm
Mild Steel
12 Gauge: 2.7mm
Stainless Steel
16 Gauge: 1.6mm
Mild Steel
10 Gauge: 3.4mm
Stainless Steel
14 Gauge: 1.9mm
Strokes
Per Minute
Approx. 40 Approx. 25 Approx. 25 Approx. 25
Cutting Length 36"
914mm
52"
1321mm
52"
1321mm
52"
1321mm
Shipping Weight 1200lbs
544kgs
1400lbs
635kgs
1600lbs
726kgs
1950lbs
885kgs
Floor Space
w/ Gauges
45" x 75 7/8" x 42 1/4"
1143 x 1927 x 1073mm
61" x 75 7/8" x 42 1/4"
1549 x 1927 x 1073mm
61" x 75 7/8" x 42 1/4"
1549 x 1927 x 1073mm
62" x 79 7/8" x 42 1/4"
1575 x 2029 x 1073mm
Floor Space
w/o Gauges
45" x 22 3/4" x 42 1/4"
1143 x 578 x 1073mm
61" x 22 3/4" x 42 1/4"
1549 x 578 x 1073mm
61" x 22 3/4" x 42 1/4"
1549 x 578 x 1073mm
62" x 22 3/4" x 42 1/4"
1575 x 578 x 1073mm
Oil Reservoir
Capacity
14 gal
53 liters
24 gal
91 liters
24 gal
91 liters
24 gal
91 liters
Motor 3 h.p. 208 volt
1800 rpm 240 volt
3 phase 460 volt
3 h.p. 208 volt
1800 rpm 240 volt
3 phase 460 volt
3 h.p. 208 volt
1800 rpm 240 volt
3 phase 460 volt
5 h.p. 208 volt
1800 rpm 240 volt
3 phase 460 volt
