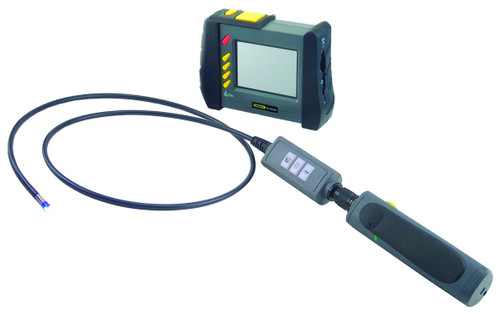

General Recording Video Inspection Camera/Borescope with High-Performance Probe - DCS1600HP

Brand:

(No reviews yet) Write a Review
SKU:
DCS1600HP

General

General Recording Video Inspection Camera/Borescope with High-Performance Probe - DCS1600HP


The DCS1600HP Video Inspection Camera/Borescope with High-Performance Probe is ideal for making high-quality video and photo inspections of inaccessible or hard-to-see areas of vehicles, environments and industrial equipment.


Features:

  • Combines H16 console of DCS1600 Recording Video Inspection System with 1m (3.3 ft.) long P16181HP High-Performance Probe. High-performance probe is also available separately in three lengths as a plug-and- play upgrade of probe supplied with discontinued DCS1600 systems
  • Consolr records VGA resolution (640 x 480 pixel) video clips and still images
  • P16181HP high-performance probe captures VGA resoluion video and features light boost, anti-reflection and 90 image rotation buttons on handle
  • Camera lighting provided by four front-facing LEDs; to minimize glare from shiny targets, lighting can be shifted to two angled LEDs
  • 3.5 in. diagonal color LCD on console for viewing probe video in real time and saved video and pictures later
  • Console is compatible with dozens of high-performance camera-tipped probes from General
  • Thumbwheel for adjusting brightness of camera lighting
  • Familiar menu-driven user interface for viewing and recording videos and photos on standard SD memory card (8GB card included) and playing back media on console, TV or PC
  • Rechargeable battery with 4-hour capacity


Specifications:

H16 CONSOLE
Display 3.5 in. (89mm) diagonal TFT color LCD
Display resolution 320 by 240 pixels (QVGA)
Recording resolution 640 x 480 pixels (VGA)
Analog video out formats NTSC and PAL
Recording medium Standard-size SD card (8GB card included)
Operating temperature 32 to 140F (0 to 60C)
Weight 13.4 oz. (380g)
Power source Rechargeable 3.7V Li-ion battery
Dimensions 8.5 x 4.7x 1.4 in. (215 x 120 x 36mm) for console
2X zoom and horizontal mirroring controls on front panel



P16181HP PROBE
Camera resolution 640 x 480 pixels (VGA)
Camera depth of field 0.25 in. to 12 in. (6.4 to 300mm)
Probe length/diameter 1m (3.3 ft.)/5.5mm (0.22 in.)
Weight 7.76 oz. (220g)



Includes:

  • H16 console of DCS1600 Recording Video Inspection System
  • P16181HP probe
  • 110 mirrored probe viewing tip
  • 8GB SD memory card
  • AC2 AC adaptor/charger
  • RCA and USB cables
  • User's manual
  • 1-year limited warranty


Click to View User Manual

General Recording Video Inspection Camera/Borescope with High-Performance Probe
