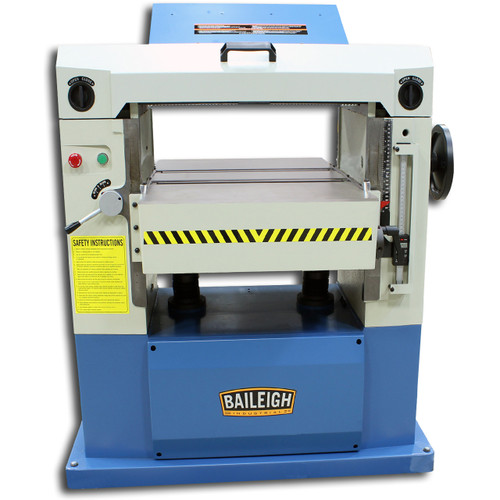

Baileigh IP-2209-HD Heavy Duty Thickness Planer - BA9-1014767

Brand:

(No reviews yet) Write a Review
SKU:
BA9-1014767

Baileigh

Baileigh IP-2209-HD Heavy Duty Thickness Planer - BA9-1014767

With a 22" width and a segmented infeed roll, this industrial wood planer lets you smooth multiple boards with different heights at once. A cast iron table and columns help a wood thickness planer last for years.

  • Massive 10 hp motor spins the cutter at 5,000 rpm.
  • Comes standard with a 5-row spiral cutter head with rotatable carbide blades that last much longer than a straight-knife blade.
  • .25" maximum depth of cut.
  • Runs on 220-volt 3-phase power.
  • Spring-loaded segmented steel infeed roll automatically adjusts to different board heights side by side.
  • Switch between 2 feeding speeds for better results on different types of wood:
    • 30 feet per minute for softer materials (or jobs where a refined surface is less important).
    • 20 feet per minute for hardwoods or materials prone to chipping. This speed gives you a smoother finish.
  • 32" x 22" cast iron table supports the material, reduces vibrations, and ensures accuracy.
  • 2 heavy columns raise or lower the table and stabilize the machine.
  • Handwheel lets you adjust the table elevation. Digital readout shows the changes for easy repeatability.
  • Segmented chip breaker stops debris from clogging the industrial wood planer (or your dust collector).
  • Chip breaker also prevents wood from chipping by holding the material down right in front of the cutter head.
  • Solid iron pressure bar maintains even force across the planed stock.
  • Steel outfeed roll moves the material consistently and reliably for fast production.
  • Quick-adjust bed rolls reduce friction.
  • You can set the bed rolls high to keep rough-sawn stock from getting stuck, or set them lower to produce the straightest, smoothest boards possible.
  • Anti-kickback fingers safely grip the material so that it’s less likely to shoot backwards if the cutter jams.
  • Covered by a 1-year parts warranty.
  • Baileigh offers lifetime technical support by phone from a team of woodworking specialists, all with hands-on machine experience.

Heavy duty thickness planer recommended for: Cabinet shops, lumber yards, or anyone who needs to process wide boards.

Specifications:

Part Number IP-2209-HD
Stock Number BA9-1014767
Table Size (Length) 32"
Table Size (Width) 22"
RPM 5000
Maximum Depth of Cut (Resaw) 1/4"
Cutter Head Diameter 3-1/4"
Max Stock Width 22"
Number of Knives 5 Row Spiral
Maximum Stock Height 9"
Minimum Stock Thickness 1/2"
Minimum Stock Length 9"
Feed Speed 2 Speed 20 & 30 fpm
Table Elevation Manual with Digital Readout
Power 220V Three Phase
Horse Power 10
Weight 1760 lbs
Shipping Dimensions 60" x 44" x 66"
