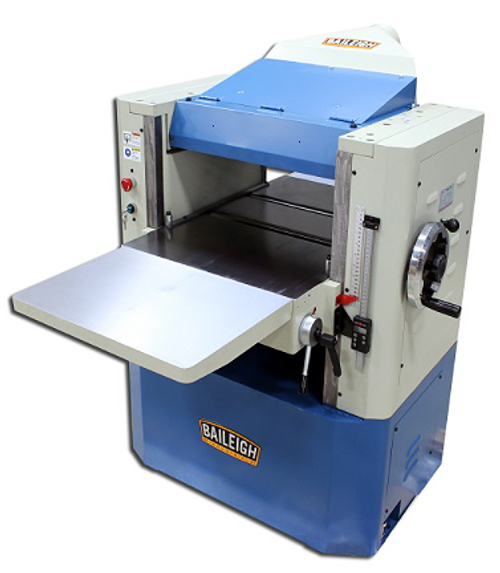

Baileigh Heavy Duty Thickness Planer, 20" x 62" Table Size - IP-2008-HD

This industrial planer has all the features you’re looking for, from a segmented infeed roll to a helical cutter head. The IP-2008-HD is perfect for cabinet makers and lumber yards.

  • 7.5 hp motor can chew through the toughest woods with ease at 4,500 rpm.
  • 4” spiral cutter head with rotatable carbide blades comes standard. This type of cutter is quieter and lasts longer than a straight-knife cutter.
  • Runs on 220-volt 3-phase power.
  • ⅛" maximum depth of cut.
  • You can raise and lower the spacious 62" x 20" table by turning the handwheel.
  • 2 heavy columns support the table, ensuring accuracy and durability.
  • Digital readout for table height helps with repeatability and makes changes quicker and easier.
  • 2 feeding speeds provide more versatility for shops working with different types of wood:
  • 20 feet per minute for softer materials or faster production in general.
  • 16 feet per minute to tackle harder woods and create a smoother finish.
  • Spring-loaded segmented steel infeed roll adjusts to the level of the boards and lets you feed multiple boards with different heights at the same time.
  • Rubber outfeed roll design keeps the feed going consistently.
  • You can set the quick-adjust bed rolls lower (to make the straightest, smoothest boards possible) or higher (to lessen stops and hang-ups in the feed).
  • Anti-kickback fingers grip the wood, so it’s less likely to fly back out if the cutter head gets jammed.
  • Solid one-piece chip breaker prevents the cutter head from removing large splinters of material; they won’t clog the machine or your dust collector.
  • Covered by a 1-year parts warranty.

Specifications:

  • Table Size (Length): 62"
  • Table Size (Width): 20"
  • Maximum Depth of Cut (Resaw): 1/8”
  • Cutter Head Diameter: 4”
  • Max Stock Width: 20"
  • Number of Knives: 5 Row Spiral
  • Maximum Stock Height: 8”
  • Minimum Stock Thickness: 1/2”
  • Minimum Stock Length: 9”
  • Feed Speed: 2 Speed 16 & 20 fpm
  • Table Elevation: Manual with Digital Readout
  • Planer RPM: 4500
  • Power: 220V Three Phase
  • Horse Power: 7.5
  • Weight (lbs): 1760
  • Shipping Dimensions: 60” x 44” x 55”
