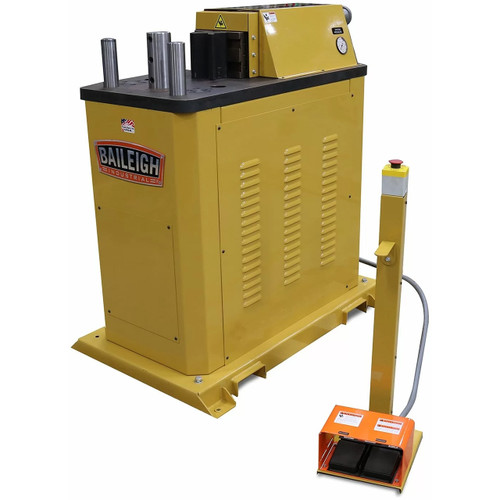

Baileigh HPB-20 20-Ton Horizontal Bending Press - BA9-HPB20

Brand:

(No reviews yet) Write a Review
SKU:
BA9-HPB20

Baileigh

Baileigh HPB-20 20-Ton Horizontal Bending Press - BA9-HPB20

This Baileigh 20-ton press brake machine can bend, punch, and shear with the right tooling. You can easily make small parts like flanges and brackets because the material lies on a flat surface.Recommended for:Full industrial production, including shipbuilding yards, boiler manufacturers, and nuclear applications. Making parts that are thick, but not wide (die size is limited).

Features:

  • 5 hp motor produces up to 20 tons of pressure.
  • 12” stroke length.
  • Horizontal bending press machine runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex.
  • Designed for simple operation. In 15 minutes, anyone could learn to run it.
  • Control the bending stroke with the foot pedal, so your hands are free to guide the material.
  • Machined table, 39” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
  • Quick-release tooling system makes changes fast and simple.
  • Includes Multi-V tooling (V-opening die and V post).
  • Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.

Specifications:

Part Number HPB-20
Stock Number BA9-HPB20
Cylinder (In) 4"
Hydraulics (PSI) 2750
Minimum Return Speed (In./Sec) .78" / sec.
Punch Open Height (In) 6
Rating (Tons) 20
Stroke (In.) 12
Work Height (In.) 39
Fixture Holes 1 @ 3" dia. / 3 @ 2" dia.
Input Power 220V / 1-phase
Motor (HP) 5 hp
Baileigh HPB-20 20-Ton Horizontal Bending Press
