Royal 3 Piece Chuck Stop Set - 69-500-510

Brand:

(No reviews yet) Write a Review
SKU:
69-500-510

Royal Products

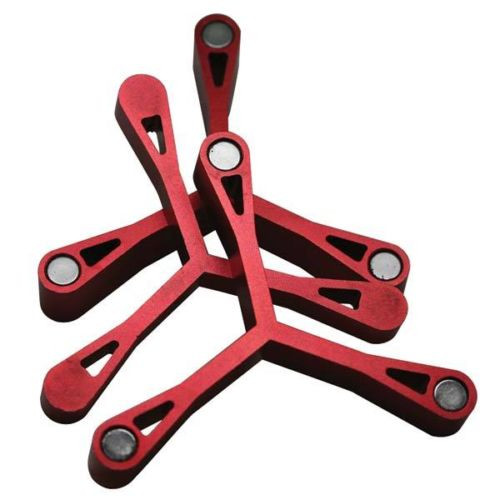

Royal 3 Piece Chuck Stop Set

Eliminates the need to bore soft jaws

Applications

  • Mounts squarely against chuck face providing a fixed surface for workpieces to locate against.

Features

  • Front and rear locating surfaces are parallel within ±.0004" (±0.01mm)
  • Allows short parts to project past the chuck jaws, providing clearance for facing operations.
  • 24mm slot width is compatible with most 3 jaw chucks.
  • Interlocking design coupled with three strong magnets holds stops securely in place - much safer than using parallels.
  • Anodized aluminum finish provides good wear-resistance.

Includes

15, 20 and 25mm stops

Chuck Not Included.

Brand ROYAL
Model # 25200
Thickness 15, 20, 25mm
Diameter 5-7/8"
Color Blue
For Use With 3 Jaw Chuck Jaws up to 55mm (2-1/8") wide
No. of Pieces in Set 3
No. of Jaws 3
Includes 15, 20 and 25mm stops
Size 15, 20, 25mm
Surface Within ±0.01mm (±.0004"
Type 3 Piece Chuck Stop Set
Weight 2.5 lbs.
Country of Origin UNITED STATES OF AMERICA
#25200 3 PIECE CHUCKSTOP SET -
