TE-CO Aluminum Fixture Plate 600.00mm - 63324

Brand:

(No reviews yet) Write a Review
SKU:
63324
Length A:
600.00mm
Width B:
600.00mm
Thickness C:
19.00mm
Thread D:
M8 x 1.25
Hole Spacing:
15mm

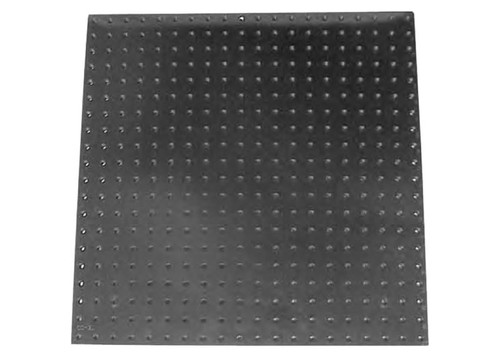

TE-CO Aluminum Fixture Plate 600.00mm

The purpose of the fixture plate is to provide a staging area to build part fixtures. Basic 3-2-1 fixturing holds true for most CMM fixturing applications, although the clamping force required to fixture parts when inspecting with a CMM is significantly less than what is required for machining. Most CMM fixtures require only light pressure clamping to secure the part in a fixed position. Our soft touch clamps are perfect for clamping in CMM fixturing applications.

  • Alpha numeric grid pattern
  • Black hard coat anodized
  • Custom sizes quoted upon request
TE-CO Aluminum Fixture Plate 600.00mm
