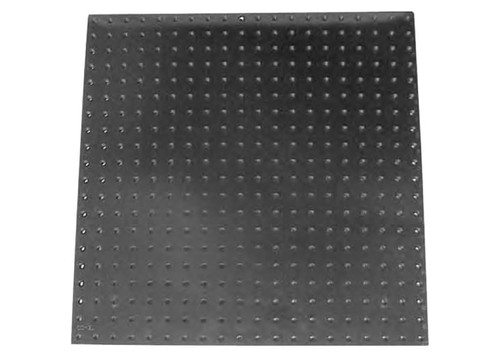

TE-CO Aluminum Fixture Plate 12" - 14312

Brand:

(No reviews yet) Write a Review
SKU:
14312
Length A:
12"
Width B:
12"
Thickness C:
0.500"
Thread D:
1/4-20
Hole Spacing:
1/2" Centers


TE-CO Aluminum Fixture Plate 12"

The purpose of the fixture plate is to provide a staging area to build part fixtures. Basic 3-2-1 fixturing holds true for most CMM fixturing applications, although the clamping force required to fixture parts when inspecting with a CMM is significantly less than what is required for machining. Most CMM fixtures require only light pressure clamping to secure the part in a fixed position. Our soft touch clamps are perfect for clamping in CMM fixturing applications.

  • Alpha numeric grid pattern
  • Black hard coat anodized
  • Custom sizes quoted upon request
TE-CO Aluminum Fixture Plate 12"
