Defelsko PosiTector UTG Ultrasonic Thickness Gage, UTG C3 Advanced - UTGC3

Brand:

(No reviews yet) Write a Review
SKU:
UTGC3

Defelsko

Defelsko PosiTector UTG Ultrasonic Thickness Gage, UTG C3 Advanced - UTGC3

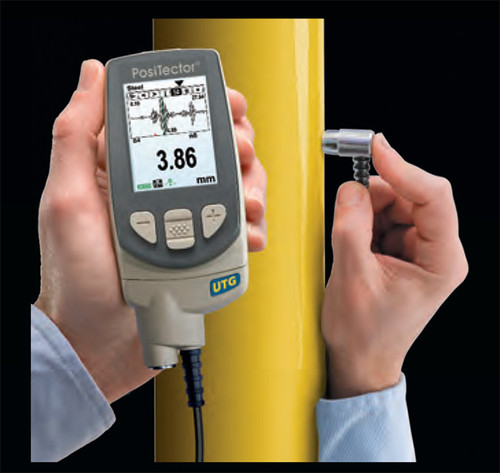

The PosiTector UTG measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.


Simple:

  • Large, easy-to-read, graphics LCD
  • Enhanced one-handed menu navigation
  • Pre-programmed velocities - simply select from a list of common materials or enter your own with ease
  • Smart Couple™ - eliminates inadvertent decoupling
    - ideal for analyzing large areas using multiple passes
  • Flashing display - ideal for noisy environment
  • RESET feature instantly restores factory settings


Durable:

  • Solvent, acid, oil, water and dust resistant – weatherproof
  • Impact resistant lens
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster with belt clip
  • Two (2) year warranty on body and probe


Accurate:

  • Precision ultrasonic transducers provide fast, accurate readings
  • Certificate of Calibration (Long Form) showing traceability to NIST included
  • Conforms to national and international standards including ASTM E797
  • Built-in temperature compensation ensures measurement accuracy


Versatile:

  • PosiTector body accepts all PosiTector 6000, 200, DPM, UTG, RTR and SPG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage. View Video
  • Hi Contrast backlit display for bright or dark environments
  • Single or two point adjustment
  • Inch/mm switchable
  • Selectable display languages
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)


Powerful:

  • Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
  • Statistics - continually displays/updates average, standard deviation, min/max thickness and number of thickness readings
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Every stored measurement is date and time stamped
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • Screen Capture - record and save image into USB flash memory for record keeping and review
  • Software updates via web keep your gage current


Software Solutions for viewing, analyzing & reporting data:

  • PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
  • PosiSoft Desktop - desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. Available as a free download.
  • PosiSoft.net account - a free web-based application offering secure storage of thickness readings
  • PosiTector App - (Advanced models only) - Mobile app connects PosiTector Advanced instruments to your iOS or Android smart device.



Advanced Models feature A-Scan and B-Scan



Ordering Guide:

PosiTector UTG Corrosion Corrosion Multiple Echo Multiple Echo
Order Code UTG C1 UTG C3 UTG M1 UTG M3
Included Body Standard Advanced Standard Advanced
Included Probe UTG C UTG M
Probe Type 5 MHz Dual Element 5 MHz Contact
Thru-Paint Capability (Multiple Echo) No Yes
Measurement Range* - Single Echo 0.040" to 5.000"
1.00 to 125.00 mm
0.100" to 5.000"
2.50 to 125.00 mm
Measurement Range* - Multiple Echo N/A 0.100" to 2.500"
2.50 to 60.00 mm
Resolution 0.001"
0.01 mm
0.001"
0.01 mm
Accuracy ±0.001"
±0.03 mm
±0.001"
±0.03 mm



See all models of the Defelsko PosiTector UTG Ultrasonic Thickness Gage

Defelsko PosiTector UTG C3 Advanced
