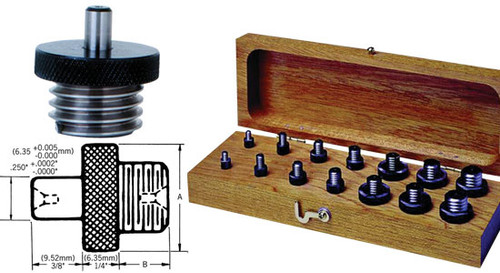

TE-CO Tapped Hole Location Gages & Sets

  • Hardened and precision ground
  • Shaft diameter .250" + .0002" x 3/8" long, 6.35mm + 0.005mm x 3/8" long
  • All diameters concentric within .0002" T.I.R.
  • Right hand thread


Gage Sets:


10308 - 14 pc. Gage Set - 2 each of 10-24 thru 5/8-11 N.C.

Threads:  10-24,  1/4-20,  5/16-18,  3/8-16,  7/16-14,  1/2-13,  5/8-11


10316 - 14 pc. Gage Set - 2 each of 10-32 thru 5/8-18 N.F.

Threads:  10-32,  1/4-28,  5/16-24,  3/8-24,  7/16-20,  1/2-20,  5/8-18


10323 - 12 pc. Gage Set - 2 each of 2-56 thru 8-32 N.C.

Threads:  2-56,  4-40,  5-40,  6-32,  8-32
