Taft-Peirce Box Parallels

Brand:

(No reviews yet) Write a Review


Taft-Peirce Box Parallel 6", 1 Core - 9160-1

  • Made in U.S.A.
  • Made from class 35-40 cast iron.
  • Cored to reduce weight and to provide convenient ledges for applying clamps.
  • May be drilled, tapped, slotted or otherwise machined for making special fixtures.
  • Two or more box parallels of a given size may be used as a set.
  • Adjacent sides square within 0.0005" per 6".
  • Opposite sides parallel within 0.0003" per 6".


Model A  B  C    D E Weight
9160-1 6" 4" 4" 11/16" 1 16 lbs.

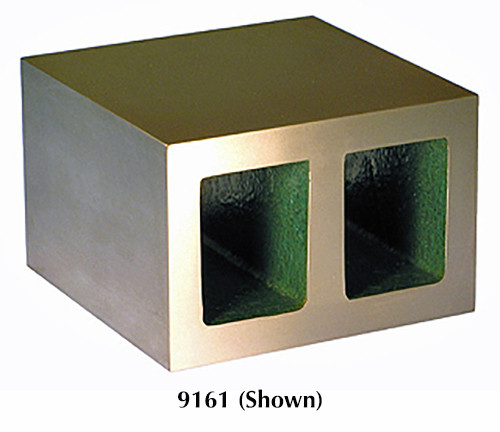

9161 6" 4" 6" 11/16" 2 25 lbs.
9162 12" 5" 8" 11/16" 2 65 lbs.
9163 16" 6" 14" 5/8" 2 110 lbs.
9164-A 10" 10" 10" 3/4" 4 125 lbs.
9164-B 12" 12" 12" 1" 4 184 lbs.
