SPI Telescoping Hole Gages
Plunger on gage expands in hole to be measured, locks in place and remove gage from hole. Final hole size is obtained by measuring over contacts with a micrometer.
Features:
- Contact points are of hardened and ground precision tool steel
- Contact plungers automatically self center in all positions
- Constant spring tension for uniform feel
- Satin chrome finish
- Models with TiN coated plungers available
- Sets supplied in vinyl pouch
Satin Chrome Finish:
| Part Number | Range | Approx. Length |
| 14-117-6 | 5/16 - 1/2" | 4.2" |
| 14-118-4 | 1/2 - 3/4" | 4.4" |
| 14-119-2 | 3/4 - 1-1/4" | 4.4" |
| 14-120-0 | 1-1/4 - 2-1/8" | 5.85" |
| 14-121-8 | 2-1/8 - 3-1/2" | 5.85" |
| 14-122-6 | 3-1/2 - 6" | 5.85" |
| 14-123-4 | Set of 4 Gages, 5/16 - 2-1/8" | |
| 14-124-2 | Set of 5 Gages, 1/2 - 6" | |
| 14-125-9 | Set of 6 Gages, 5/16 - 6" | |
Extended Length Handles - Satin Chrome Finish:
| Part Number | Range | Approx. Length |
| 15-445-0 | 5/16 - 1/2" | 12" |
| 15-446-8 | 1/2 - 3/4" | 12" |

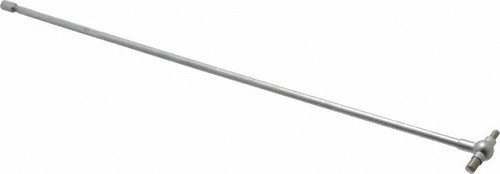

| 15-447-6 | 3/4 - 1-1/4" | 12" |
| 15-448-4 | 1-1/4 - 2-1/8" | 12" |
| 15-449-2 | 2-1/8 - 3-1/2" | 12" |
| 15-450-0 | 3-1/2 - 6" | 12" |
TiN Coated Finish:
| Part Number | Range | Approx. Length |
| 14-193-7 | 5/16 - 1/2" | 4.2" |
| 14-194-5 | 1/2 - 3/4" | 4.4" |
| 14-195-2 | 3/4 - 1-1/4" | 4.4" |
| 14-196-0 | 1-1/4 - 2-1/8" | 5.85" |
| 14-197-8 | 2-1/8 - 3-1/2" | 5.85" |
| 14-198-6 | 3-1/2 - 6" | 5.85" |
| 14-192-9 | Set of 6 Gages, 5/16 - 6" | |
