SPI Electronic Crimp Height Micrometer, 0-1" - 17-638-8

Brand:

(No reviews yet) Write a Review
SKU:
17-638-8

SPI

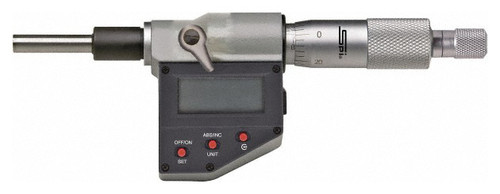

SPI Electronic Crimp Height Micrometer, 0-1"


0 to 1 Inch Measurement
0.0001 Inch Accuracy
0.00005 Inch Resolution
Ratchet Stop Thimble
LR44 Battery


Features:

  • Measures height of crimp contacts
  • Pointed spindle with blade anvil
  • Preset, zero set, data hold/output
  • Inc./abs./inch/metric measuring
  • Resolution: 0.00005" / 0.001 mm
  • Accuracy: 0.00016" / 0.004 mm
  • Spindle dia.: 0.25"
  • SPC output
  • Ratchet Thimble
  • Spindle Lock
  • Certificate of calibration traceable to NIST
  • Furnished in fitted case


Specifications:

Operation Type Electronic
Minimum Measurement (mm) 0
Minimum Measurement (Decimal Inch) 0
Maximum Measurement (Decimal Inch) 1
Maximum Measurement (mm) 25
Thimble Type Ratchet Stop
Resolution (mm) 0.001
Resolution (Decimal Inch) 0.00005
Accuracy (mm) 0.002
Accuracy (Decimal Inch) 0.0001
Water Resistance Rating IP65
Rotating Spindle Yes
Data Output Yes
Battery Type LR44
Traceability Certification Included NIST
SPI Electronic Crimp Height Micrometer, 0-1"
