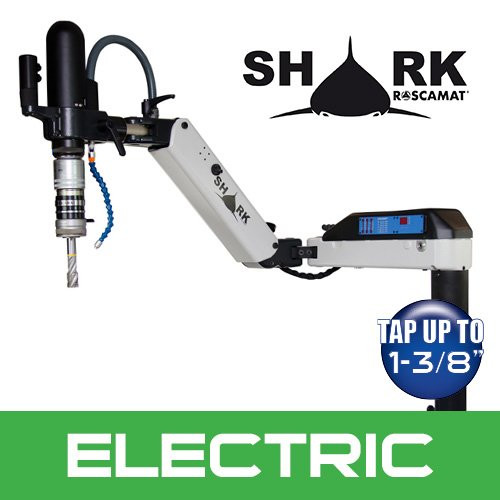

Roscamat Shark Electric Tapping Arm
110V, Vertical, 500 RPM Module
R09202F-500
The Shark is an electric model and offers the largest tapping capacity of the electric line-up at 1-3/8" (M36). This cast aluminum arm is light and flexible allowing for easy set up and mobility around the plant. Roscamat manufactures its own powerful motors designed specifically for tapping, giving the Shark a speed range of 40 – 900 RPM and also comes standard with depth control (vertical position only). The Shark has the longest reach at 48" and a height of 32". This unit is available in a 220V single phase or 110V single phase. An orientable head is also an option, which allows for tapping vertical or horizontal.
Reach 48" - Height 32"
- Tap up to 1 3/8" (M36)
- Tap up to 1" (M27) in Horizontal
- High frequency motor
- Electronic speed control indicator
- Right hand rotation control
- 1 motor 6 speed capabilities
- 6 interchangeable speed modules
- Tool lubrication with timer
- Tapping depth control (vertical position only)
- Heavy duty cast aluminium construction
Options:
- 220V Single Phase
- 110V Single Phase + transformer
- Vertical tapping
- Vertical & horizontal tapping (VH)
Specifications:
| Item Number | Description | Interchangeable Speed Module (RPM) | Capacity (inch) | Capacity (metric) |
| R09202F-500 | SHARK V 110V | 500 | #0 - 1 3/8" | M2-M36 |
Shark Electric Tapping Arm
