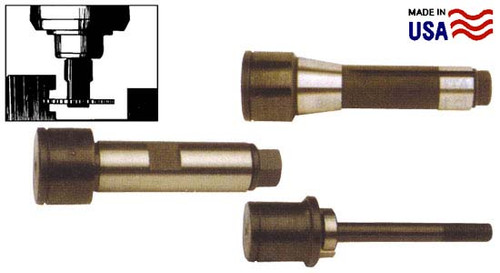

Precise Semi-Flush Milling Arbors
A series of adapters permits the use of cutters having holes smaller than 1". They extend the cutter 1.25 inches below the arbor holder providing better access with the smaller diameter cutters.
Features:
- The clamping force of the drawbar couples the nut directly to the cutter.
- The cutter becomes part of the spindle.
- Arbor holder is hardened and ground to eliminate cutter runout.
- Steel keys assure positive drive.
- Machine in either direction without unscrewing the nut.
Specifications:
| Product # | Type | Cutter Hole Dia. | O.D. |
| 25400001 | R8 Taper Stub Semi-Flush Arbor Cutters to 1/2" Wide | 1" | 1.50" |
| 25400003 | R8 Taper Stub Semi-Flush Arbors Cutters to 1/2" Wide | 1-1/4" | 1.75" |
| 25400005 | 1" Straight Shank Semi-Flush Arbors Cutters to 1/2" Wide | 1" | 1.625" |
| 25400007 | 1" Straight Shank Semi-Flush Arbors Cutters to 1/2" Wide | 1-1/4" | 1.375" |
| 25400017 | Semi-Flush Adapter For 1" Arbors | 1/2" | 7/8" |
