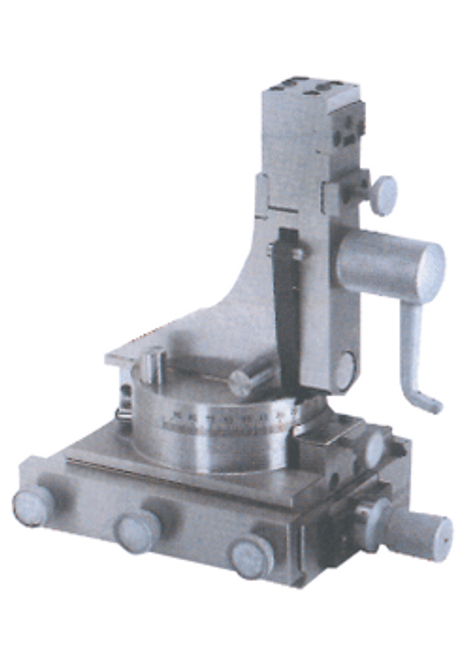

Precise Profile Diamond Radius & Angle Dresser, Made in China - PRA-110

  • Extremely accurate, this Radius and angle Dresser can dress 2 angles tangent to a radius in one continuous motion to within .0001" (0.002mm).
  • Fast and easy set-ups without elaborate accessories; only tools needed are a micrometer and a hex key wrench.
  • Set-up to dress 2 angles takes less than 15 seconds and 1 radius plus 2 angles approx. 3 minutes only.
  • Precise and sharp contours, concave or convex, are consistantly obtained at a full 180º range.
  • Made from hardened, ground, and lapped allow tool steel.
  • No exposed wear surfaces, swivel on sealed bearings.
  • Wheel dresser is furnished complete with base featuring one inch adjustment.
  • Graduated micrometer knob provides fine adjustment to accurately dress small radii.

Specifications:

  • Dressing Capacity: 8" Wheel Diameter
  • Range: Convex Radii 0 to 1.500"
    Concave Radii .030" to 1.500"
  • Height to center of diamond: 6-1/2"
  • Overall Height: 7"
  • Base Dimensions: 4-3/4" x 3-1/2" x 1-1/4" high
  • Weight: 23 lbs.
