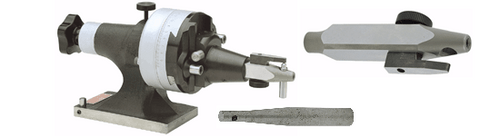

Precise Optical Radius & Angle Dresser
3900-0060
- 1° Vernier markings for dressing angles
- Magnifications, through hole in the spindle, makes it possible for the operator to see how to dress the form on the grinding wheel
- Dresser is tested and guaranteed for accuracy
- Radius Diamonds Sold Separately
- Case included
- Made in Taiwan
3900-0060
Specifications:
| Overall height | 4" |
| Length | 8-1/4" |
| Swing arm | 180° |
| Max.size grinding wheel | 8" |
| Max.outside radius (on wheel) | 5/8" |
| Center height | 2-1/2" |
| Spindle | 1" O.D. |
| Weight | 11 lbs. |
Click for Radius Diamonds:
PRECISE Optical Radius & Angle Dresser with Fitted Case
