Sharp Industries 10" x 50" Table Vertical Head Mill - TMV1

These vertical knee mills are equipped with vari-speed drive, available with optional digital vari-speed. The dove tail ways chromed, and the box ways are hardened and ground.

Head

  • To dissipate heat in the 3 HP motor driven head, a pair of high output fans is installed. This allows the machine to work demanding jobs for extended periods without damaging the motor, belts and bearings. A unique SHARP feature.
  • The motor shaft and Vari Drive pulleys are dynamically balanced, then hard-chromed. This allows a vibration free milling even at high speed
  • Since the Vari-speed drive system is operated by sliding the Vari Drive pulley up and down the motor shaft. The motor shaft is therefore chrome-plated, and has an oil channel that is fed by a grease fitting on the lower end for self-lubricating purpose. This ensures the sliding motion is trouble free at all times. A unique SHARP feature.
  • The motor shaft that drives the pulley and the spindle is subject to a lot of lateral stress. A roller bearing is installed for the lower support of the motor shaft. A unique SHARP feature.
  • Beside swiveling 90 degree side to side, the head can also swivel up and down by virtue of a knuckle joint design. The new design developed by Sharp uses 6 bolts, 3 each side, that fitted into a circular T-slot milled at the inside of the over arm and secured by nuts from the outside. It secured the head tightly and offered high accuracy in milling operations.
  • A matched pair of super-precision ABEC-7 angular contact bearings supports the spindle. The quill is CNC-ground to a mirror finish, and then chromed to fit the housing. Together, they insure spindle run out of no more than 0.0004” TIR- the best in the industry.

Column, Table and Knee

  • Hardened and ground box ways on column and saddle.
  • Turcite coated slideways for better resistance to wear and retention of lube oil.
  • Certified MEEHANITE castings are used for superior rigidity and better dampening of vibrations.
  • Table and saddle backlash is controlled by a double-nut design that keeps the feed screw in contact with a pair of bronze nut at all times. A unique SHARP feature.
  • Hardened leadscrews on table and saddle for better resistance to wear.
  • The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement.
  • Instead of hand scraping the top of the knee ways for oil retention, the matching underside of the saddle is hand-scraped. This extra step avoids having chips and dirt embedded in the knee ways and damages the sliding area.
  • "Bridgeport-style" mill

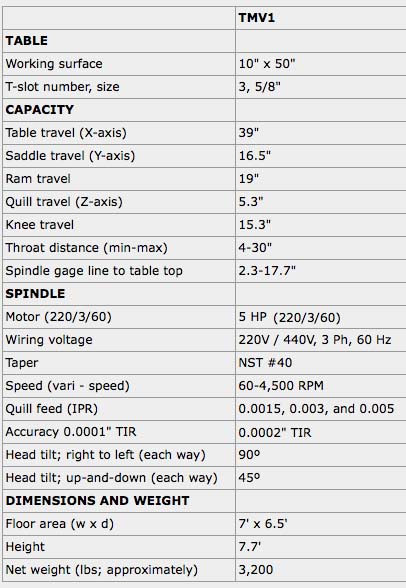

TMV1

  • Hardened leadscrews on table and saddle for better resistance to wear.
  • The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement.
  • Instead of hand scraping the top of the knee ways for oil retention, the matching underside of the saddle is hand-scraped. This extra step avoids having chips and dirt embedded in the knee ways and damages the sliding area.

STANDARD ACCESSORIES:

  • Hardened and ground box ways
  • Draw bar
  • Front and rear way cover
  • One-shot lube system
  • Toolbox with tools

OPTIONAL ACCESSORIES:

  • Call for Pricing.
  • Power feed system on table, saddle & knee
  • Power draw bar
  • Riser block (4" or 7")
  • Right angle milling attachment
  • Coolant system with chip pan
  • Milling vise
  • Clamping kit
  • Halogen work light
  • R-8 Collets
