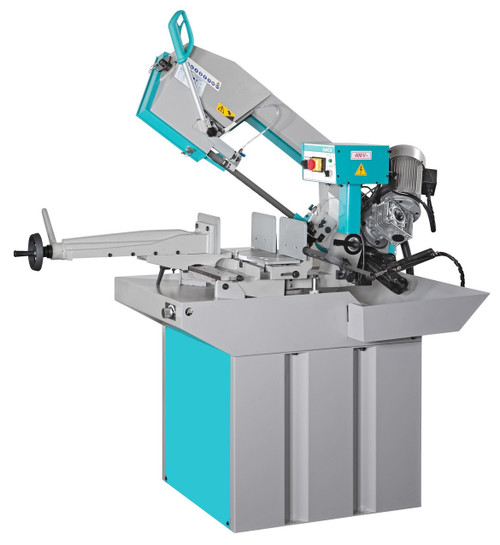

Clausing-Kalamazoo 10" Horizontal Double Miter Wet Bandsaw, Inverter Drive - MS10D

Brand:

(No reviews yet) Write a Review
SKU:
MS10D

Clausing

Clausing-Kalamazoo 10" Horizontal Double Miter Wet Bandsaw, Inverter Drive - MS10D

  • 1.5hp drive motor, heavy-duty reducer, & variable step drive assembly
  • Double miter saw frame for adjustable left or right angles
  • Feed down cylinder
  • 2 - speed motor with worm gear driven gear box, worm shaft is hardened and ground
  • Bi-metal saw blade
  • Blade tension gauge system
  • Coolant System
  • Machine stand with door
  • Operation & parts manual
  • Two (2) year limited warranty
  • Voltages are 220v/1ph and 230v/3ph all other voltages may require a transformer or special order


Specifications:

Type Horizontal Double Miter Wet Cut
Drive Motor 1.5 hp
Blade Speed 118-236fpm (36-72mpm)
Blade (W x T x L) 1" x .035" x 120.3"
90° Cutting Capacity
Round
Square
Rectangular (H x W)

10.2" (260 mm)
7.9" (200 mm)
13.8" x 7.9" (350 x 200 mm)
+45° Cutting Capacity
Round
Square
Rectangular (H x W)

7.9" (200 mm)
7.9" (200 mm)
8.7" x 7.9" (220 x 200 mm)
-45° Cutting Capacity
Round
Square
Rectangular (H x W)

7.9" (200 mm)
7.9" (200 mm)
9.1" x 7.9" (230 x 200 mm)
+60° Cutting Capacity
Round
Square
Rectangular (H x W)

5.5" (140 mm)
5.5" (140 mm)
5.5" x 5.5" (140 x 140 mm)
Floor to Table Height 39.5"
Floor Space 63.4" x 39.4" x 64.5"
Floor Space (mm) 1610 x 1000 x 1639 mm
Work Bed Height 39.4" (1000 mm)
Net Weight 792 lbs. (360 kg)
Shipping Weight 900 lbs. (409 kg)
Shipping Dimensions 70" x 45" x 71"


Optional Accessories:

  • P10 - Stock Stand Assembly 21" – 30"
  • SM1300 - 208v Buck Boost Transformer 2 HP 3PH
  • SA10 - Roller Table 18" x 10' x (28" - 42") 4.5" Ctr. (4.4K cap)
  • SA11 - Roller Table 18" x 5' x (28" - 42") 4.5" Ctr. (4.4K cap)
  • CSR1 - SAWZIT 1 Gallon Coolant
  • CSR5 - SAWZIT 5 Gallon Coolant



See all accessories for the Clausing-Kalamazoo 10" Horizontal Double Miter Wet Bandsaw, Inverter Drive MS10D
