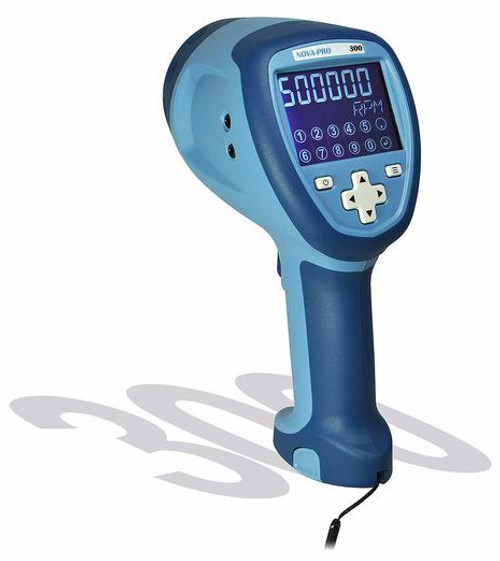

Monarch Instrument Nova-Pro 300 LED Stroboscopes/Tachometers


We have combined all the features of our hand held LED stroboscopes together with a full function laser tachometer to create a compact, ergonomic and extremely powerful two in one predictive maintenance tool. The stroboscope light source is made up of twelve LED’s which are extraordinarily bright yet extremely efficient allowing cool continuous operation and extremely long battery life (up to 19 hours on a single charge). Continuous operation is also possible with the optional AC adapter.


Nova-Pro™ 100: Designed for simple stroboscopic stop motion inspection and RPM measurement applications.The integral laser module is an optional item that can be added to make the 100 a full featured tachometer.


Nova-Pro™ 300: Has all the features of the 100 described above. It includes the integral laser module for tachometer mode or strobe trigger mode and adds a high contrast inverse blue LCD display with back light and touch sensitive number pad for setting flash rates quickly, ultra high intensity LED’s for even more light output, memory for up to 10 preset flash rates, input and output jacks for external sensors or pulse repeater output and NIST calibration certificate.


The Nova-Pro 300 is available as a stand alone battery powered or AC powered device. It can also be purchased in Kit form which adds a protective die cut foam lined carry case. "Select" model above to view the exact contents and price of each available model.


How to use: Practical applications for White and UV strobes in the Printing and Converting Industries:


Features:

  • Stroboscope & Tachometer in one!
  • Super bright LED's
  • Integral/removable laser module (optional on 100)
  • Splash resistant IP54 enclosure
  • 1/4" x 20 tripod mount
  • Ergonomic one handed operation
  • Removable rechargeable Li-ion battery
  • Continuous AC operation available
  • TTL compatible input/output jacks (300, 500)
  • NIST Certificate of Calibration included with 300 and 500 models


Benefits of LED:

  • Energy efficient with long battery life (9 hours typical)
  • Extremely bright, uniform light output
  • Completely silent
  • Cool operation
  • No lamp replacements
  • Extremely high flash rates (up to 999,999 FPM)


Typical Uses:

  • Visual running inspections of: Fan blades, motors, shafts, gears, rollers, webs, belts, sheaves, chains, sprockets and much more without having to shut down your process
  • Diagnose alignment issues
  • Determine speed of rotating equipment using strobe or built in laser tachometer
  • Troubleshoot high speed automation processes by placing them in virtual slow motion
  • Print quality inspection
  • Textile processing inspection
  • Phase reference balancing


View Features Comparison Chart for Models 100/300/500


Specifications:

Model Nova-Pro 100 Nova-Pro 300 Nova-Pro 500
Flash Range (FPM/RPM) 30-999,999 30-999,999 30-999,999
Display 6 Digit Numeric and 5 Digit Alphanumeric LCD Reflective 6 Digit Numeric and 5 Digit Alphanumeric LCD with Touch Keypad. High Contrast Blue Background/White Characters with Back Light 6 Digit Numeric and 5 Digit Alphanumeric LCD with Touch Keypad. High Contrast Blue Background/White Characters with Back Light
Accuracy/Resolution 0.001% of Setting or +/-1 Lsd/6 Digits to 0.001 0.001% of Setting or +/-1 Lsd/6 Digits to 0.001 0.001% of Setting or +/-1 Lsd/6 Digits to 0.001
Light Output 3400 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, Max light output: 24,000 Lux 5500 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, Max light output: 30,000 Lux 5500 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, Max light output: 30,000 Lux
Flash Duration Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs
Light Source 12 LED Array 12 High Output LED Array 12 High Output LED Array
Color Temperature Approx. 6200°K Approx. 6200°K Approx. 6200°K
External Triggers in/out N/A TTL (12Vdc Max) input. Provides 3.3 Vdc TTL output TTL (12Vdc Max) input. Provides 3.3 Vdc TTL output
Tachometer Mode 0-999,999 RPM with Integral Laser (optional) 0-999,999 RPM with Integral Laser or External input 0-999,999 RPM with Integral Laser or External input
Programmable Memory N/A Yes (10 set points) Yes (10 set points)
Internal Phase Shift N/A N/A Yes
Phase Delay - Degrees N/A N/A -360.0 to 345.0 Degrees
Time Delay - milliseconds N/A N/A -50.000 to 50.000 Msec
Virtual RPM (Slow Motion) N/A N/A -60.0 to 60.0 VRPM
Power Supply (Battery) Removable/rechargeable Li-Ion battery pack with 115/230 50/60 Hz recharging station Removable/Rechargeable standard Li-ion Battery Packs (Qty. 2) with 115/230 50/60 Hz recharging station
Operating Time

Standard Battery Pack: 9.5 hours typical (6000 FPM, 2 deg. duty cycle)
Hi-Capacity Battery Pack: 19 hours typical (6000 PPM, 2 deg. duty cycle)
AC Power adapter (optional): Continuous

Power Supply A/C 15/230 Vac 50/60Hz AC Adapter with 6 ft. (3M) Cable and Interchangeable outlet Adapters (optional)
Weight 1.4 lbs. (635 Grams) with Standard Battery
1.5 lbs. (680 Grams) with Hi-capacity Battery
Size ( LxWxH) 9.5 x 3.75 x 5.5 in. (241 x 95 x 140 mm)
Housing Material/Rating PC-ABS blend/IP54
