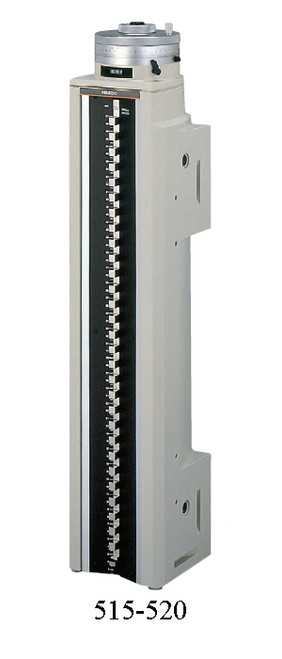

Mitutoyo Universal Height Master Series 515

Usable in Vertical and Horizontal Orientations


Features:

  • The Universal Height Master is designed for both vertical and horizontal orientations, providing a wide range of applications such as accuracy checking of machine tool table movements.
  • Fitted wooden case supplied.


Technical Data:

Graduation 0.001mm or 0.00001"
Counter Resolution 0.001" or 0.01mm
Character Height 0.16" / 4mm
Block arrangement Straight arrangement
Travel stroke 1" or 20mm
Pitch .025"/rev or 0.5mm/rev
Hysteresis .00004" / 1.2μm up to 24.2" / 610mm
.00006” / 1.5μm for 40.2” / 1010mm
Block pitch accuracy ±1.5μm (0 < R ≤☐310mm)
±2.5μm (310 < R ≤☐610mm)
±3.5μm (610 < R ≤☐1010mm)
Parallelism of blocks 1.0μm (0 < R ≤☐310mm)
2.5μm (310 < R ≤☐1010mm)
Provided with inspection certificate.



Click to see Supporting Base for Vertical Operation
