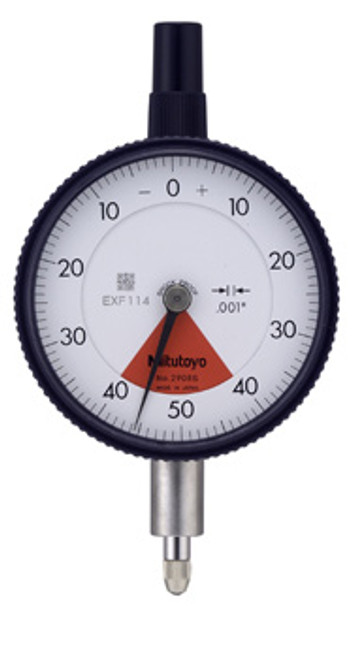

Mitutoyo Standard One Revolution Dial Indicator 2973TB, 0 - 1.6mm


This is a lightweight one revolution dial indicator that gives you error-free reading.

The Metric One Revolution Dial Indicator offers you the following benefits:

  • Limiting the pointer rotation to one revolution eliminates the reading errors that can occur with other dial indicators that use multiple pointer revolutions for a full stroke.
  • Graduation 0.01mm/ 0.02mm


Features:

  • Series 2
  • Shock-proof
  • The crystal is hard coated for durability and scratch resistance
  • Improved resistance to shop floor contaminants such as water and dust
  • A pair of limit hands are provided for quick and easy tolerance judgment (GO/&[;usmn;NG)
  • Steam dia: 3/8 / 8mm
  • Thread size: #4 - 48/M2.5 x 0.45
  • Flat back


Specifications:

Range 1.6 mm (plunger stroke: 3.5)
Range per rev. 2 mm
Graduation 0.02 mm
Scale 80-0-80
Measuring force 0,4 - 1,4 N
Mass lug/plain 75 g
One revolution Yes
Cushioned end point Yes
IP52 Yes
Range 16 µm
Inch-Metric Metric
Repeatability 5 µm
Any 1/10 revolution 8.0 µm
Hysteresis error 4 µm
fe 15 µm
fu 4 µm
fges 19 µm
