Mitutoyo Input Tools Series 264-Digimatic Gage/PC Data Input Device

Brand:

(No reviews yet) Write a Review

Mitutoyo

Input Tools Series 264-Digimatic Gage/PC Data Input Device

FEATURES:

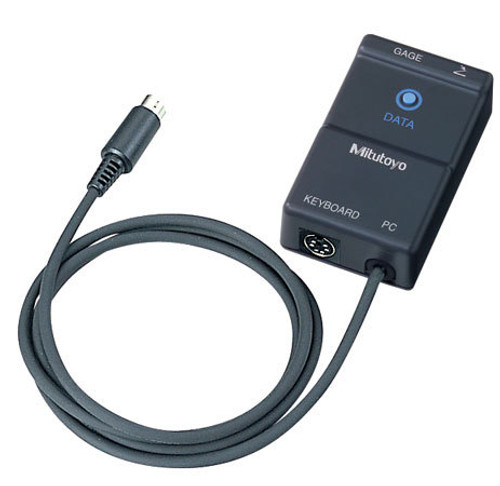

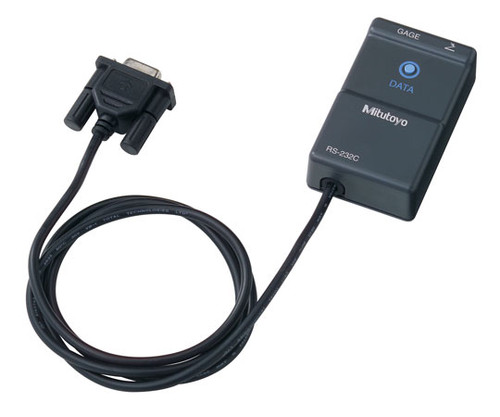

The input tool is an interface enabling you to easily input measurement data from a Mitutoyo measuring instrument with the digimatic output feature to your PC. An USB keyboard signal conversion input tool, IT-012U converts measurement data to keyboard signals and directly inputs them to cells in off-the-shelf spreadsheet software such as Excel. An RS-232C communication input tool, IT-007R is also available to input data through RS-232C communication. More accurate measurement is possible using an optional foot switch.

Optional Accessories

937179T: Foot switch
939039: Gage selector
*1:Connecting cable (optional accessory) is required for a connection to a Digimatic measuring tool.
*2:Cannot be used for computers that use USB keyboard. When using a IBM Think Pad Series, a commercial keyboard adapter is required. When using AT style keyboard, adapter for conversion is required.





Order No 264-005 264-007
Measuring Tools Required *1 Mitutoyo Digimatic measuring tools w/SPC output Mitutoyo Digimatic measuring tools w/SPC output
PC Requirement PC/Laptop compatible,with PS/2 style keyboard interface*2 Connects to keyboard port on CPU. PC/Laptop Compatible,with RS-232C Interface Connects to RS-232C port on CPU (D-sub 9-pin connector)
Outside Dimension 2.8x1.7x.9in 72x44x23.5mm 1.7x0.9x2.8in 44x23.5x72mm
Mass 70g 2.5 91g 3.2
