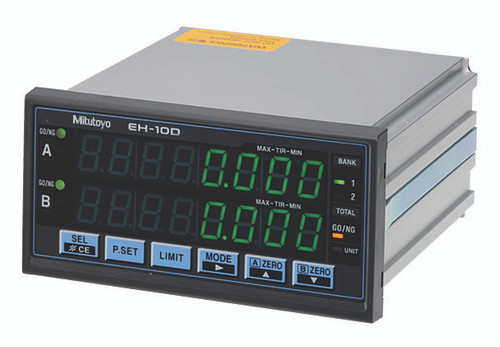

Mitutoyo EH Counter Series 542 Multi-function Display Units

Brand:

(No reviews yet) Write a Review

Mitutoyo

Mitutoyo EH Counter Series 542 Multi-function Display Units


Features:

  • Two types are available for this model: a 1-axis display and a 2-axis display, which enables addition or subtraction calculations between two gages.
  • Multifunctional counter equipped with zerosetting, presetting, tolerance judgment.
  • RS-232C and USB are equipped as standard.Data transfer to a PC is possible. (*USB is supported only by Mitutoyo SENSORPAK.)


Technical Data:

Display Sign plus 8 digits (Green LED)
Tolerance judgment display LED display (3 steps: Amber, Green, Red/ 5 steps: Amber, Amber flashing, Green, Red flashing, Red)
Interface:

RS-232C/USB/parameter selection via digimatic (only DP-1VR, digimatic mini-processor can be connected)
(USB used only with SENSORPAK.)
Selection by parameter from 3-step, 5-step, or digit BCD
Total tolerance judgment output (when tolerance function is enabled)
Analog output (1V-4V)

Input/output:

Control output- Normal operation signal (NOM): open-collector
Control input- Display BANK switching, peak mode, presetting, display hold, hold per axis:
open-collector or no-voltage contact signal (with/without contact point)

Rating:

Power supply voltage: Supplied AC adapter, or 12 - 24V DC
Power consumption: 8.4W (max. 700mA) Ensure at least 1A is available per unit.

Operating temperature (humidity) range 0 to 40°C (RH 20 to 80%, no condensation)
Storage temperature(humidity) range -10 to 50°C (RH 20 to 80%, no condensation)
External dimensions 144 (W) x 72 (H) x 156.7 (D) mm
Standard Accessory AC adapter: No.02ADN460
AC cable (USA): No.02ZAA010


Optional Accessories:

  • 02ADB440: I/O output connector
  • 02ADF180: 10-key unit
  • 936937: SPC cable (40”/1m)
  • 965014: SPC cable (80”/2m)


Specifications:

Order No 542-071A 542-072A 542-073A 542-074A 542-075A
Model EH-102P EH-102D EH-102Z EH-102S EH-101P
Applicable
gage
head
LGE, LGF, LGK, LGB, LGM, LG, LGH
(not compatible with LGH-110,
reference point, or sine wave models)
LGD, LGS, ID,SD LGF with reference point mark LGB sine wave output /
Linear scale sine wave output
LGE, LGF, LGK, LGB, LGM, LG, LGH
(not compatible with LGH-110,
reference point, or sine wave models)
No of
gage input
2
(Double-display)
2
(Double-display)
2
(Double-display)
2
(Double-display)
1
(Single-display)
Quantizing
error
±1 count ±1 count ±1 count ±1 count ±1 count
Max input
frequency
2.5 MHz
(Differential
square-wave)
Digimatic
code SPC
2.5MHz
(Differential
square-wave)
1MHz
Differential
sine-wave
2.5MHz
(Differential
square-wave)
Resolution .000005, .00005, .0005" /
0.0001, 0.0005, 0.001,
0.005, 0.01mm
.0005" / 0.01mm .000005, .00005, .0005" /
0.0001, 0.0005, 0.001,
0.005, 0.01mm
.000001" / 0.1µm, 0.01µm .000005, .00005, .0005" /
0.0001, 0.0005, 0.001,
0.005, 0.01mm
Mass 800g 800g 800g 900g 760g
Tolerance judgment display LED display (3 steps: Amber, Green, Red / 5 steps: Amber, Amber flash, Green, Red flash, Red)



Models EH-101P & EH-102P for use with:


Model EH-102Z for use with:
