Mitutoyo Dial Snap Gages-Series 201

Brand:

(No reviews yet) Write a Review

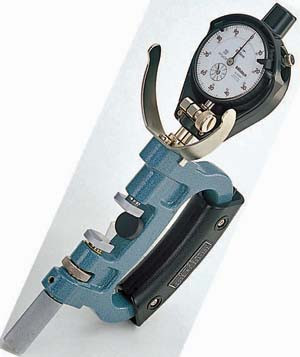

Mitutoyo Dial Snap Gages-Series 201

FEATURES:

Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes. Dial indicator is optional. Anvil retracting stroke: .078”/2mm Anvil positioning range: 1”/25mm Wide (.53 x .47”/13.5 x 12mm), flat carbide anvils. Both front edges of the anvil are chamfered for easy insertion.

Technical Data
Accuracy: Refer to the list of specifications
Anvil retracting stroke:.078”/2mm
Anvil positioning range: 1”/25mm
Anvil flatness: .00004”/1µm
Order No Range Parallelism Measuring Force
201-151 0-1in .00025 in or less 15N±3N
201-152 1-2in .00025 in or less 15N±3N
201-153 2-3in .00025 in or less 15N±3N
201-154 3-4in .00025 in or less 15N±3N
201-155 4-5in .00025 in or less 15N±3N
201-156 5-6in .00025 in or less 15N±3N
201-157 6-7in .00025 in orless 15N±3N
201-158 7-8in .00025 in or less 15N±3N
201-159 8-9in .00025 in or less 15N±3N
201-160 9-10in .00025 in or less 15N±3N
201-161 10-11in .00025 in or less 15N±3N
201-162 11-12in .00025 in or less 15N±3N
