Mitutoyo Coolant Proof Micrometers - Series 293

Brand:

(No reviews yet) Write a Review

Mitutoyo

Mitutoyo Coolant Proof Micrometers Series 293


with Dust/Water Protection Conforming to IP65 Level


FEATURES:

  • IP65 protection level, enabling use in environments exposed to cutting oil, etc*
    *Anti-corrosion treatment is required after use.
  • Measurement data output function is available with a water-resistant connection cable.
  • Auto power ON/OFF function.
  • Certificate of inspection* is included. (50mm/2” or less range models)
    *It is not the type used to obtain calibration certificates.
  • With a standard bar except for 0-25mm/0-1" model.
  • Supplied in fitted case. Plastic case up to 150mm/6", Wooden box over 150mm/6"


Technical Data:

Accuracy: Refer to the below list of specifications.
Resolution: 0.001mm or .00005"/0.001mm
Flatness: 0.3µm/.000012”
Parallelism: 1µm/.00004” for models up to 50mm/2”
2µm/.00008” for models up to 100mm/4”
3µm/.00012” for models up to 175mm/7”
4µm/.00016” for models up to 275mm/11”
5µm/.0002” for models over 300mm/12”
Measuring Faces: Carbide tipped
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery Life: Approx. 1.2 years under normal use (8 months: over 100mm models)
Dust/Water Protection Level: IP65
Function: Origin-set, Zero-setting, Automatic power on/off, Data hold, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error



Micrometer SET #293-960 Contains:

  • 293-330
  • 293-331
  • 293-332
  • & 2 standard bar in the plastic case


Micrometer SET #293-961 Contains:

  • 293-330
  • 293-331
  • 293-332
  • 293-333
  • & 3 Standard bar in the wooden box


Click for:

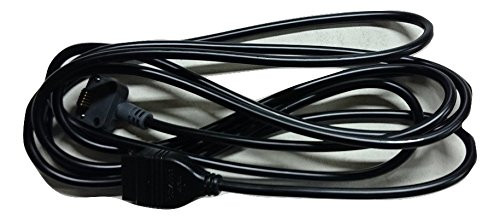

SPC cable with data switch (1m / 40") - 05CZA662

SPC cable with data switch (2m / 80") - 05CZA663
