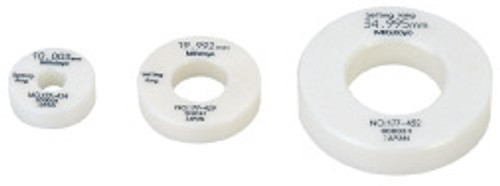

Mitutoyo Ceramic Setting Rings

Setting Rings - Series 177

Accessories for Inside Micrometers, Holtest and Dial Bore Gages

Features:

• Used for quick and accurate setting of dial bore gages, Holtest, and inside micrometers.
• If a setting ring of an optimal size is prepared, it can be used for calibration.

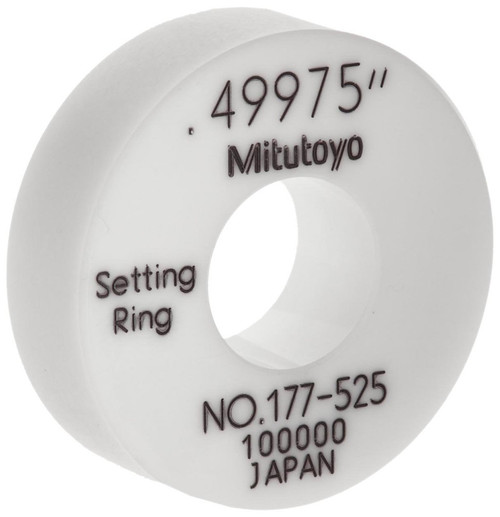

• Actual inside diameter is marked on each ring
• No more anticorrosion treatment is required when handling Ceramic Setting Rings normally, resulting in simple maintenance and storage.

Technical Data:

Tolerance between the nominal size and the actual diameter:
.0004" for .1" - 1.8" DIA. setting rings

Cylindricity: .00004" for .1" - 1.8" DIA. setting rings

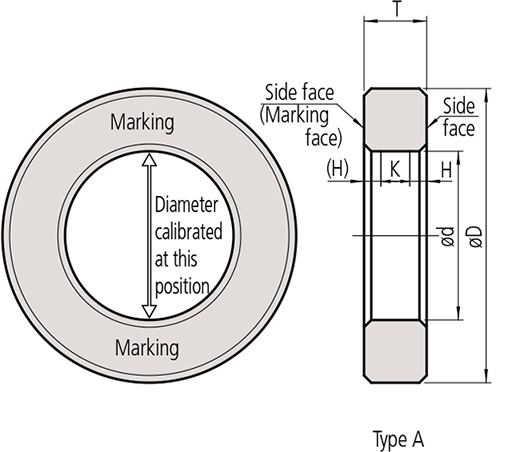

Dimensions - unit: mm

Specifications:

for use with Mitutoyo Dial Bore Gage Sets
