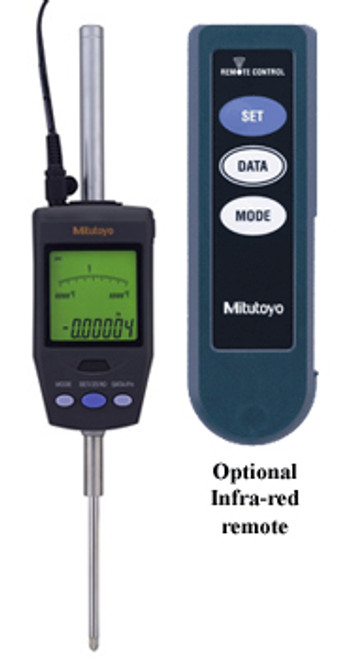

Mitutoyo ABSOLUTE Digimatic Indicator ID-H Series 543-High Accuracy and High Functional Type

Features:

  • This new-generation digital indicator offers the excellent accuracy and functionality expected from this class of indicator. Take advantage of its high accuracy backed up by 0.5ìm / .00002" resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analog bar display.
  • The maximum, minimum, or runout value can be displayed during measurement.
  • GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
  • With SPC data output.
  • With RS-232C input/output

Technical Data:
Accuracy: Refer to the list of specifications.
Resolution: 0.0005mm/0.001mm or .00002”/.00005”/.0001”/0.0005mm/0.001mm
Display: LCD
Length standard: Linear encoder
Max. Response speed: 1000mm/s
Measuring force: 2.0N/2.5N* or less (*60mm range models)
Power supply: 6V DC (via AC adaptor)

Function:
Origin-set/Preset, Zeroset, GO/±NG judgment, Max/Min value hold, Runout measurement, Resolution switching, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error

Specifications:

Order No 543-562A 543-564A
Model ID-H530E ID-H560E
Accuracy 0.0015mm 0.0025mm
Range 0-1.2in 0-30.4mm 0-2.4in 0-60.9mm
Resolution .00002,.00005,.0001in 0.0005,0.001mm .00002,.00005,.0001in 0.0005,0.001mm
