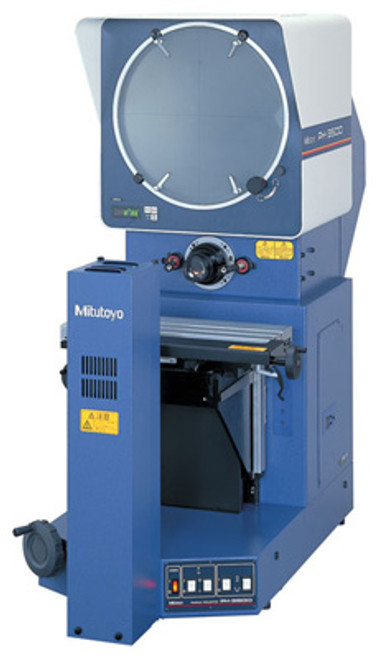

Mitutoyo 14" Optical Comparator Profile Projectors

Model PH-3515F - Profile Projector

  • Heavy-duty Bench-top model that uses horizontal optical system.
  • Erect image on the day-bright screen.
  • 14"(353mm) diameter protractor screen with cross-hairs and staggered lines for easy alignment.
  • Digital angle measurement to 1' or 0.01º.
  • Floating-type workstage incorporates linear scales for fast, accurate measurement.
  • Built-in linear scales for use with optional display counters.
  • Suitable for thread pitch measurements, free from blurred or distorted images when workpiece is angled.

Optional:

Surface Illuminator
Fiber Optic Illuminator
