Meyer Steel Pin Gages - Library Series

NEW CLASS "Z" MINUS OR PLUS TOLERANCE

LASER THERMAL ETCHED - SIZE & SERIAL NUMBER

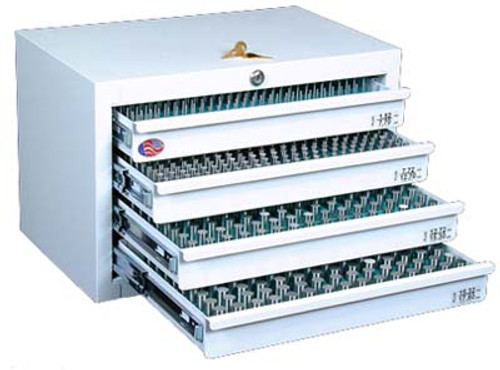

CLASS Z ENGLISH GAGE LIBRARY SETS

We started making the original ZZ back in 1965 and our competition has tried, but can’t copy the quality of these affordable pin gage sets. We now have taken the extra step for the better pin gage, Class Z. Introducing the MEYER Z. A closer tolerance (.0001), more accurate and better for your needs. We have done it again. We’ve made a better pin gage that no other has attempted with the same great features listed below.

See for yourself, below is a comparison of the Class ZZ and the Class Z gage pin specifications.

OLD Class ZZ
Size deviation .0002”
Roundness geometry .0001”
Surface finish 10 micro
NEW Class Z
Size deviation .0001"
Roundness geometry .00005"
Surface finish 8 micro


The Meyer Gage Class Z gage pin will meet or exceed the requirements of Class ZZ, and can replace the Class ZZ in any situation or application.


FEATURES:

More features than gages costing twice the price.

  • All gages and sets are traceable to N.I.S.T.
  • Boxes and gages both marked
  • Size and serial number laser etched on each piece (M-O not etched)
  • Material: 52100 Bearing Steel
  • No sharp edges
  • All members 2” long

USES:

  • Checking locations
  • Measuring hole sizes and depth
  • GO & NO/GO gaging
  • Setting micrometers
  • Checking distances between holes

FINISH:

  • Centerless lapped
  • Each gage is inspected and has a 8 microfinish or better
  • Heat treated to a hardness of 60-62 Rockwell C
  • All English gages with .0001" limit



CLASS Z METRIC GAGE LIBRARY SETS

Just look at this selection of Metric gage pin sets. If we don’t make it you probably don’t need it! These sets have all the features of our English sets, but provide the finer increments in size that you just can’t get by converting English to Metric.


FEATURES:

More features than gages costing twice the price.

  • All gages and sets are traceable to N.I.S.T.
  • Boxes and gages both marked
  • Size and serial number laser etched on each piece (M-O not etched)
  • Material: 52100 Bearing Steel
  • No sharp edges
  • 51mm overall length
  • All sets in .02mm increments

USES:

  • Checking locations
  • Measuring hole sizes and depth
  • GO & NO/GO gaging
  • Setting micrometers
  • Checking distances between holes

FINISH:

  • Centerless lapped
  • Each gage is inspected and has a 8 microfinish or better
  • Heat treated to a hardness of 60-62 Rockwell C
  • All metric gages with .0025mm tolerance limit


Individual gages also available in both Inch and Metric sizes, call to inquire.


*** Please Specify MINUS or PLUS Tolerance in the Order Instructions/Comments box when checking out.
