Mahr Federal Mechanical 3D-Touch Probes 802 W


Applications

Can be used on milling and EDM machines to:

  • determine the zero position on a work piece
  • determine the center of a bore
  • determine and correct the position of a work piece

and for measurement of:

  • lengths
  • depths


Features:

  • High accuracy and linearity
        - suitable for measuring work pieces
        - measurement over the entire working range is possible
  • Can be controlled independently of a machine tool
  • Easy to read display
  • Large working range in all axis (X, Y, Z) prevents damage to the stylus by contacting errors
  • Shock and Water proof, ideal for the use on a machine with a tool changer
  • Compact metal housing and long probe arm


Technical Data:

Model Order No. Repeatability Readings Dial dia. Mounting shaft dia.
802W 4304310 ± 0.01 mm 0.01 mm 50 mm 16 mm
802 WZ 4304315 ± 0.0004" 0.001" 2.0" 3/4"



Accessories:

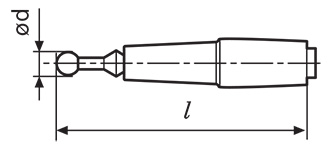

Styli Order No. dia. D length L Working range
        x,y z
802Wts 4304330 4 mm 44.8 mm 10 mm 7.5 mm
802Wtk 4304331 3 mm 32.6 mm 13 mm 7.5 mm
802Wtl 4304332 6 mm 71.1 mm 19 mm 7.5 mm
