Mahr Federal IP65 Digital 3D-Touch Probe 802 EWZ

Brand:

Call for Pricing

(No reviews yet) Write a Review

Mahr

Mahr Federal IP65 Digital 3D-Touch Probe 802 EWZ - 4304305


Applications

Can be used on milling and EDM machines to:

  • determine the zero position on a work piece
  • determine the center of a bore
  • determine and correct the position of a work piece

and for measurement of:

  • lengths
  • depths


Features

  • High accuracy and linearity
         - suitable for measuring work pieces
         - measurement over the entire working range is possible
  • Can be controlled independently of a machine tool
  • Easy to read display due to the combination of:
         - a progressive analog display (bar graph) for dynamic path information
         - a digital display for accurate reading
  • Large working range (6 mm) in all axis (X, Y, Z) prevents damage to the stylus by contacting errors
  • Shock and water proof; ideal for the use on a machine with a tool changer
  • Compact metal housing and long probe arm


Technical Data:

Order No Model Working range
X, Y, Z-Axis
unidirectional
Repeatability
in zero position
display
Resolution
of digital
Display
Range
Mounting
shaft dia
4304305 802 EWZ .0787" to .157" ± .0001" .0001" ± .0787" 3/4"

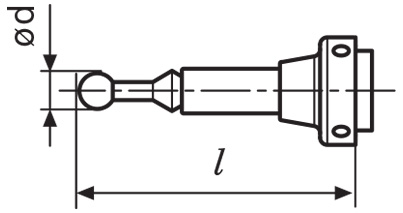

Mahr Styli 802 EWt - 4304320

dia (d) - 4 mm
Length: 31 mm
