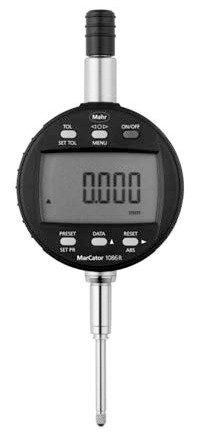

MAHR Digital Indicators MarCator 1086 R
The 1086 digital indicators with fixed resolution incorporate the reference system which automatically stores the zero position for further measurements. All 1086 digital indicators come standard with MarConnect. If you need to document your data, we have digital indicators which offer Integrated Wireless data transmission, the optimal solution for transmitting your measured values to a PC.
Features:
- High contrast LCD
- Operating and display unit (bezel) can be rotated through 280°
- Lifter protection cap on the measuring spindle
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Immediate measurements due to the Reference System
Functions:
- ON/OFF
- RESET (set display to zero)
- mm/inch
- Reversal of counting direction
- PRESET (for entering a numerical value)
- TOL (enter tolerance limit values)
- <0> (tolerance GO / NO GO display mode)
- ABS (display can be set to zero without losing reference to preset)
- DATA (data transmission via connection cable)
- Factor (adjustable)
- LOCK (individual button lock)
