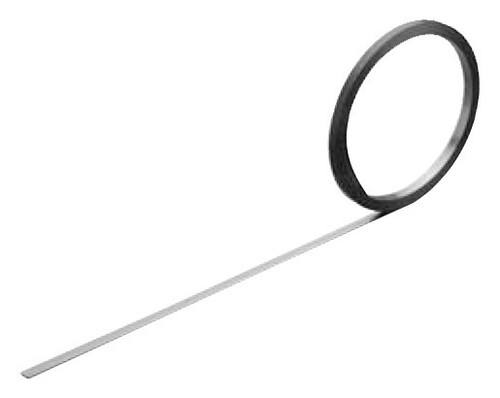

Magnescale SL130 Digiruler Tape Scales


Non-contact detection and a long measuring range


Features:

  • Magnetic principle
  • Excellent resistance to workshop conditions (PL20C equivalent to IP65). Resistant to oil, dirt, vibration, and shock.
  • Resolution: 10 μm
  • Max response speed: 300 m/ min (varies with the read head and settings)
  • Available in lengths up to 30 m (SL130)
  • High cost efficiency
  • Easy installation on all types of machines from wood working to metal cutting


Specifications:

Measuring length(L) 200, 300, 400, 500, 600, 700, 800, 1000, 1200, 1500, 1600, 1700, 1800, 2000, 2500, 3000, 4000, 5000, 6000, 7000 mm 8000, 9000, 10000, 20000, 30000 mm
Overall length Measuring length+103mm
Accuracy(20℃)*1 (50+10L/1000)μm L:Measuring length(mm)
  • (50+10L/1000+20N)μm L:Measuring length(mm)
    • N=
    • 1→Measuring length8000/9000/10000
    • 2→Measuring length20000
    • 3→Measuring length30000
Mounting parallelism Head clearance(top) 0.8mmor less/Overall length
Head clearance(side) 1.0mmor less/Overall length
Thermal expansion coefficient (10.4±1)×10-6/℃
Operating temperature -5℃~+45℃
Storage temperature -10℃~+50℃
Compatible read head PL20C/PL25
Compatible read head and Interpolator PL81/82


*1 Accuracy shows the value when used with PL20C/25 read head and PL81/82.
