Laguna Tools Revo 18|36 Lathe

Brand:

Call for Pricing

(No reviews yet) Write a Review

Laguna Tools

Laguna Tools Revo 18|36 Lathe - MLAREVO1836


The 18|36 Lathe features a brand new design & details that will excite any serious bowl turner!


The first feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.


The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity & strength.


Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle.


The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.


Options:

  • 3" Riser Blocks for Revo 18/36
  • 12" Extension Swings Away to Park Tailstock
  • Single Cast Iron Leg with Pads

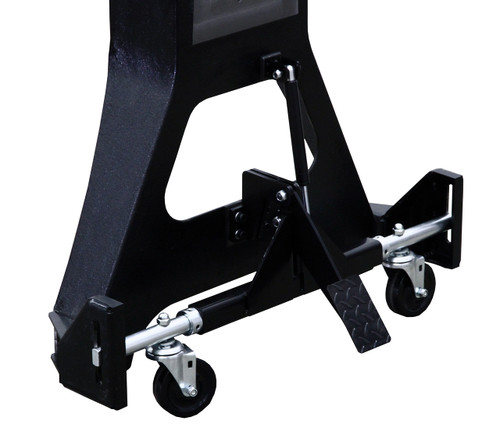

  • Deluxe Wheel System for Revo 18|36 Lathe
  • 58-1/2" REVO Bed with No Leg
  • 20" Bed Extension w Tool Rest Extension
  • Comparator for copying
  • Flip Away Head Stock Guard
  • Inverter Only for Vacuum System
  • Halogen light w/ Transformer


Specifications:

Electrical 2HP, 220 Volt, 60 hz
Motor Induction, 1725 RPM, TEFC
VFD Delta S1 Variable Frequency Drive
Phase 1 Phase input, 3 Phase output
Recommended Breaker 20 Amp
Max. Outboard Swing 32"
Swing over Banjo 13-1/2"
Steel Bed ASTM A36
Spindle Taper MT #2
Swing over Bed 18"
RPM High 135 - 3500
RPM Low 50 - 1300
Tailstock Quill 4-1/2", Engraved, Self-Ejecting
Floor to Spindle Center 41-1/2" w Pads
Front Bearing TPI Taiwan 6207LLU
Rear Bearing TPI Taiwan 6205LLU
Spindle Index # 14/36/48 w Lock
Distance between Centers 36"
Headstock Through-Bore 3/8"
Headstock Travel Full Length
Tailstock Through-Bore 3/8"
Spindle Size 1-1/4" X8 TPI RH
Floor to Bed 32-1/2" w Pads
Floor Space W 60" D 26" H 47"
Weight (Net / Ship) 427 / 480 Lbs.
Poly-Groove Drive Belt w EZ Access
Spring Loaded Spindle Lock
Tailstock Storage of centers
