K.O. Lee High Precision Surface Grinders
- Economical and easy to operate. Our manual and automatic surface grinders offer all of the accuracy of more expensive surface grinders, with the same quality features.
- The High Precision Surface Grinder longitudinal and cross slide ways are precision hand- ground then laminated with Turcite-B. This provides a smooth, even travel with low wear. A full support system maintains accuracy during table reversing and full length of travel. Main components including base, column and saddle, are made of High Quality Meehanite cast iron stress relieved to insure rigid stability.
- The features also include slip-ring hand wheel dials, a removable cartridge-type spindle with a pair of duplex Class 7 bearings, and dynamically balanced motor starting at 2HP. Increased HP packages available.
Standard Features:
- Grinding Wheel
- Wheel Flange
- Wheel Extractor
- Wheel Balancing Arbor
- Wheel Balancing Base
- Auto Lube System
- Leveling Screws with Blocks and Eyebolts
- Toolbox and Tools
- Working Lamp
- Manual
Optional Equipment:
- Permanent Magnetic Chuck 250 x 500mm
- Electro Magnetic Chuck 250 x 500mm
- Auto Down Feed
- Micro Feed for Vertical
- Micro Feed for Cross Feed
- Magnetic Separator with coolant system
- Auto Paper Strip Filter w/Coolant system
- Auto Paper Strip Filter w/Mag. Separator + Coolant
- Parallel Dresser (manual)
- NC Auto dressing & compensation
- Auto crossing stroke adjustment

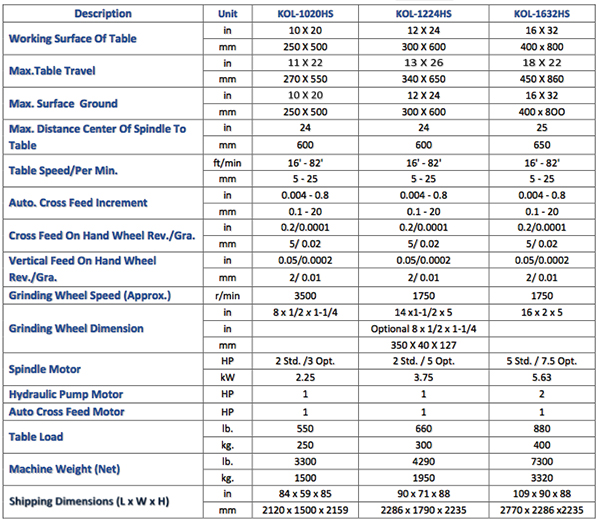

Specifications:
