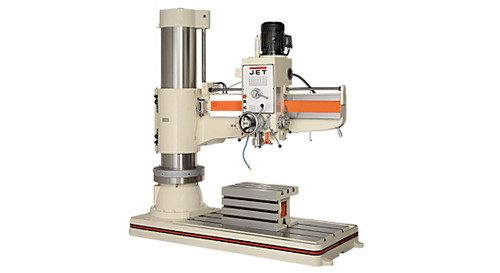

Jet 5' Arm Randial Drill Press

Brand:

(No reviews yet) Write a Review

  • The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
  • The spindle is made of the finest case hardened steel for extra strength and wear
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • Push button controls are all reduced to 110V
  • Electrical circuits are located in the built-in control box at the rear of the arm- this keeps the controls dust and humidity free while making them easily accessible for maintenance
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
  • Arm raising safety device prevents arm from dropping
  • Counter balanced mechanism for spindle return
  • 12 speeds/3 feed rates make exotic materials easier to drill, bore and tap
  • Centralized control center
  • Automatic tool ejector
  • Hydraulic head and column clamping
  • Built in work light
  • Coolant pump
  • Tool kit
  • Box table
Specification

Overall Dimensions (in. LxWxH)   116 x 55 x 112
Net Weight 11000 pound
Number of Spindle speeds 12 (40 - 1920)
Spindle Taper 5 MT
Column Diameter (in.) 17
Drilling Capacity Mild Steel (in.) 2-1/2
Tapping Capacity Cast Iron (in.) 2-3/8
Tapping Capacity Mild Steel (in.)
Boring Capacity Steel (in.)
Boring Capacity Cast Iron (in.) 7-3/8
Distance Column to Spindle (max/in.) 63
Distance Column to Spindle (min/in.) 17
Travel of Head Horizontal (in.) 49-5/8
Distance Base to Spindle (max/in.) 63
Distance Base to Spindle (min/in.) 13
Arm Travel Vertical (in.) 50
Quill Travel (in.) 14-9/16
Quill Travel w/ Powerfeed engaged (in.)    13
Quill Down feed Rates (IPR) 6 (.003 - .038 IPR)
Elevating Motor 2 HP
Base Dimensions (in.) 97-5/8 X 41-11/32 X 8-1/4
Coolant Pump Motor 1/2 HP
Machine Hieght from Floor (in.) 124-58/64
Table Dimensions (in.) 27-7/8 X 19-5/8 X 15-3/4
