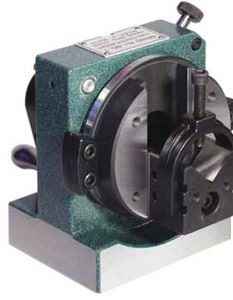

Harig Grind-All No. 2 Fixture w/ Rotary Table Mechanism - 021-100

Brand:

(No reviews yet) Write a Review
SKU:
021-100

Harig

Harig Grind-All No. 2 Fixture - 021-100

with Rotary Table Mechanism

Features:

  • Hardened and ground tool steel with solid one-piece construction
  • Preloaded ball and race design provides highest accuracy bearing
  • Graduated 360 degrees for convenience
  • 24 division index plate with precision index pin locks in every 15 degrees to +/- 10 seconds
  • 2 adjustable stops work with stop pin to set accurate angles between index locations
  • Locking screw locks spindle at any position between indexes
  • U-Clamp and screw secure piece part in v-block
  • Removable v-block for accurate face-plate work
  • 6-7/8" diameter face plate has tapped holes for mounting purposes
  • Hand crank for easy rotation is removable when used horizontally
  • Optional rotary table mechanism provides geared rotation in the horizontal position
  • Full repair service and replacement parts available
