GMC Heavy Duty Power Bending Rolls
Models:
| # PBR-0412A | 4’ x 12 Ga. | Manual handwheel - to move the bending roll | 2HP, 220/440v, 3PH. |
| # PBR-0412B | 4’ x 12 Ga. | Manual handwheel - to move the bending roll | 3HP, 220V, 1PH. |

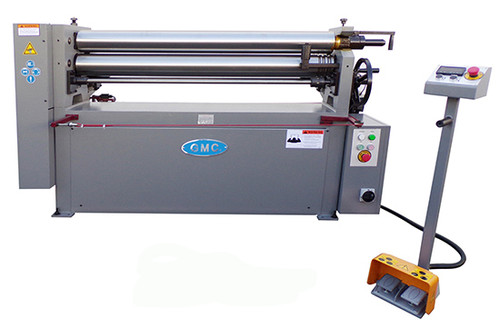

| # PBR-0412E | 4’ x 12 Ga. | Powered bending roll - up/down w/push button & display | 2HP, 220/440V, 3PH. |
| # PBR-04316 | 4’ x 3/16” | Manual handwheel - to move the bending rolls | 3HP, 220/440V, 3PH. |

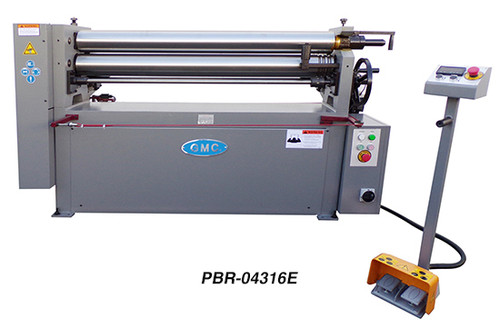

| # PBR-04316E | 4’ x 3/16” | Powered bending roll - up/down w/ push button & display | 3HP, 220/440V, 3PH. |
| # PBR-0425 | 4’ x 1/4” | Manual handwheel - to move the bending roll | 5HP, 220/440V, 3PH. |
| # PBR-0425E | 4’ x 1/4” | Powered bending roll - up/down w/ push button & display | 5HP, 220/440V, 3PH. |
| # PBR-0510 | 5’ x 10 Ga. | Manual handwheel - to move the bending roll | 3HP, 220/440V, 3PH. |
| # PBR-0510E | 5’ x 10 Ga. | Powered bending roll - up/down w/ push button & display | 3HP, 220/440V, 3PH. |
| # PBR-0610 | 6’ x 10 Ga. | Manual handwheel - to move the bending roll | 5HP, 220/440V, 3PH. |
| # PBR-0610E | 6’ x 10 Ga. | Powered bending roll - up/down w/ push button & display | 5HP, 220/440V, 3PH. |
Standard Features:
- ISO 9001 certified
- Taiwan machines
- 3-rollers are driven to perform high accuracy
- Adjustable cone attachment included
- 3/8”, 1/2” and 5/8” grooves on rollers
- One wheel one-side operated for bending roll
- One wheel one-site operated for pinch roll ( E model is powered )
- Heavy duty casting frame
- Heavy duty all steel welded construction
- 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
- Quiet running operation
- Easy swing-out top roller
- Safety line all around the machine for emergency stop
- All rolls run forward and reverse
- Safety type forward/reverse foot pedal
- Power source 220V, ( option: 440V, 3 phase )
- One year industrial warranty for parts
Standard Equipment for GMC HD Power Bending Rolls:
- Adjustable cone attachment
- 3/8”, 1/2” and 5/8” grooves on rollers
- Removable safety foot pedal
- Operation & parts manual
- Orange color front cover is optional.
- E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
Optional Equipment:
- Safety fence for enclosure of the back side of the machine.
Specifications:
| Model # | PBR-0412 PBR-0412E | PBR-04316 PBR-04316E | PBR-0425 PBR-0425E | PBR-0510 PBR-0510E | PBR-0610 PBR-0610E |
| Capacity Mild Steel | 4’3” x 12 Ga. | 4’3” x 3/16” | 4’3” x 1/4” | 5’1” x 10 Ga. | 6’8” x 10 Ga. |
| Capacity Stainless Steel | 4’3” x 16 Ga. | 4’3” x 11 Ga. | 4’3” x 11 Ga. | 5’1” x 14 Ga. | 6’8” x 14 Ga. |
| Roll Dia. | 3-1/2” | 4-3/4” | 6-1/4” | 4-3/4” | 5” |
| Min. Bending Dia. | 4-3/4” | 6” | 8-1/4” | 6” | 6-3/4” |
| Pre-bend | 0.07” | 0.16” | 0.25” | 0.12” | 0.12” |
| Rolls Speed | 20 ft/min. | 20 ft/min. | 20 ft/min. | 20 ft/min. | 20 ft/min. |
| Rolls Opening | 1/2” | 1/2” | 1/2” | 1/2” | 1/2” |
| Main Motor | 2HP | 3HP | 5HP | 3HP | 5HP |
| Weight (approx) | 1950 lbs. | 2,750 lbs. | 3,850 lbs. | 3,050 lbs. | 3,850 lbs. |
| Overall Dimensions | 78" x 30" x 50" | 78" x 30" x 52" | 78" x 33" x 52" | 96" x 32" x 52" | 106" x 33" x 52" |
