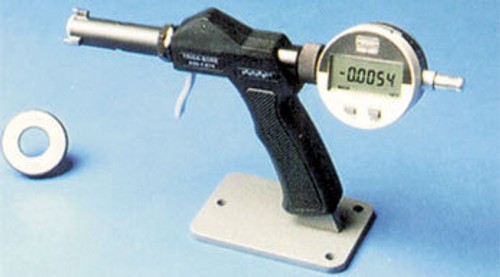

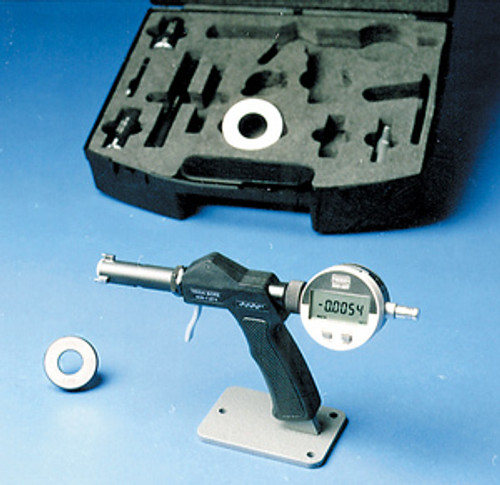

FLEXBAR TRIGA-BORE 3-POINT GAGING SYSTEM

FEATURES:

• True-Bore heads have a large measuring range and are supplied with fixed anvils eliminating operator error. 24 heads cover .236"-7.87" (6-200mm range).

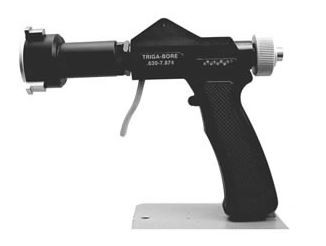

• Unique System design allows two measuring handles or pisto lgrip Triga-Bore™ to cover .236"-7.87" (6-200mm range).
• Extensions available for increased gaging depths.
• Accuracy: .0001" - .0002"
• Repeatability: .0001"/0,002mm.
• High degree of accuracy can be achieved without need for special skills.
• Customer can specify type of output.
• Ideally suited to simple or integrated measurement applications.
• Can be used for special applications such as threads 'o' ring grooves, spherical forms, etc.

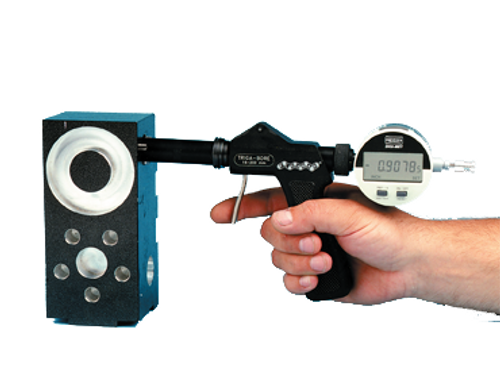

• Ergonomically designed handle offers single handed operation.
