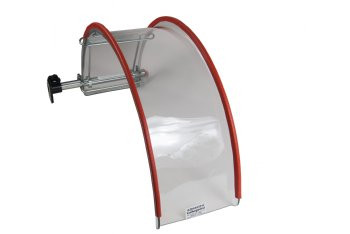

Flexbar Latheguard, Large - 13064

Brand:

(No reviews yet) Write a Review
SKU:
13064
Suggested Lathe Size:
20 to 24

Flexbar

Flexbar Latheguard, Large - 13064


Prevent Accidents With LATHEGUARD
Clear LEXAN, Semi-Circular Wrap-a-round Guards

  • Heavy Duty Cast Mounting bracket supplied
  • Heavy Duty Chrome-plated extension tube and hardware
  • Ready to mount; all you do is affix mounting bracket with two screws
  • Back of shield is reinforced with plated wire-form housing
  • Locks in swing away or functional positions
  • Accepts 3 or 4-Jaw Chucks
  • Rib reinforced
  • Robust construction
  • Light in weight
  • Swings away easily


Information and Specifications:

HINTS, FOR SELECTING THE CORRECT LATHEGUARD!

  1. The Chuck Diameter being used on your Lathe makes for a good formula
  2. Utilize Dimension "A" and other dimensions on chart shown on page 5 of our Safety Brochure.
  3. On Lathes with center heights of 7 inches or more there is a significant variation in the diameter of a 3-Jaw as against a 4-Jaw Chuck. It may be necessary to install the next larger Latheguard to accommodate for the 4-Jaw Chuck. Keeping a double bracket (No. 13071) on the Lathe makes it possible to switch your latheguard from small to larger size and vice versa, in one minute.


NEITHER RAZOR-SHARP CHIPS NOR BROKEN TOOLS BITS WILL PENETRATE THE LEXAN SHIELD


LARGE Model No. 13064 suggested Lathe size is 20 to 24 for use with Chucks up to 20" Diameters.

  • Shield Width: 8"
  • Shield Length: 23.6"
  • Tube Length: 13"


Specifications:

Model No.
Suggested
Lathe Size
Center
Height (A)
(Shield Height)
Use With
Chucks
Shield
Width
(F)
Shield
Length
(B)
Tube
Length
(E)
13064
20 to 24
13”
Up to 20” Dia
8”
23.6”
13”



See all Flexbar Latheguards
