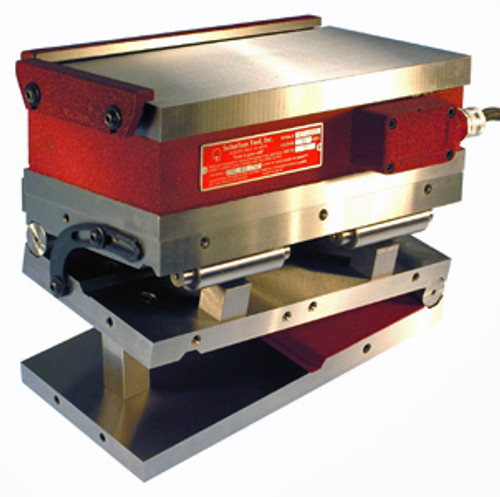

Suburban 18"L x 6"W x 8-7/8"H Electromagnetic Compound Transverse Pole Sine Plate - ESPC-618-T-S2

Brand:

(No reviews yet) Write a Review
SKU:
ESPC-618-T-S2

Suburban Tool

Suburban 18"L x 6"W x 8-7/8"H Electromagnetic Compound Transverse Pole Sine Plate - ESPC-618-T-S2

  • Sine Set Series S2
  • Chuck top plates are laminated from 1/8" steel & 1/16" stainless steel, then furnace-brazed to form one solid piece.
  • All units are sealed against dirt & liquids.
  • Longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size & shape of the part to be held.
  • Chuck controls must be used with all electromagnetic chucks!
  • Compound Sine plate and electromagnetic chuck can be used together or independently.
  • Electromagnetic chuck can be quickly removed or replaced using only four bolts.
  • Two self-storing, hardened & ground rails included for the sine plate.
  • Two side rails included for the electromagnetic chuck.
  • Gage block rolls provide dual 0.200" minute steps for setting small angles with standard gage blocks.
  • Angular accuracy guaranteed within 5 seconds of arc up to 15°, within 10 seconds up to 30°, & within 15 seconds up to 45°.
  • C1 Measurement: 15” ±0.0003
  • C2 Measurement: 5" ±0.0002"
  • Square & Parallel: 0.0004”
  • Watts: 130
  • Weight: 251 lbs.
  • Made In U.S.A.

For More Suburban Electromagnetic Compound Transverse & Longitudinal Pole Sine Plates Click Here
