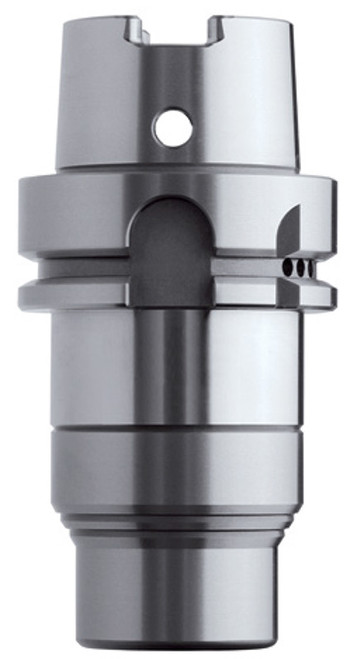

Emuge/Albrecht High Precision FPC Milling/Drilling Chucks, HSK-A

Brand:

Emuge/Albrecht High Precision FPC Milling/Drilling Chucks, HSK-A

Call for Pricing

(No reviews yet) Write a Review
Emuge/Albrecht High Precision FPC Milling/Drilling Chucks, HSK-A

Emuge Albrecht

Emuge/Albrecht High Precision FPC Milling/Drilling Chucks, HSK-A


New Emuge high precision / performance FPC Mill / Drill Chucks provide unprecedented rigidity, vibration dampening, concentricity, machining speed and tool life vs. conventional chuck technologies for milling and drilling applications. Available in a wide range of styles. Internal and peripheral coolant options, and MQL-adaptable.


Increase your machining speed and tool life to the highest possible levels


Emuge FPC Chuck Advantages:

Reliability

  • Extremely high transferable torque provides maximum process reliability. Transferred torque on a tool shank diameter of 20mm is 400 Nm.

More accurate

  • With a 3 x D tool length, concentricity is ≤ 3 μm, guaranteeing long tool life and quality surface finishes.

Longer tool life

  • Special holder design reduces vibration, dramatically improving work piece surface finishes and providing exceptionally long tool life.

Fast tool change

  • Simple, highly accurate design enables quick tool change in seconds, via hex wrench.


FPC High Precision Milling/Drilling Chucks Highlights:

  • 0.000118" runout at 3XD projection
  • Excellent vibration dampening due to collet-holder construction
  • Available in CAT, HSK, SK, and BT Shank configurations
  • Available in many different gauge length
  • Clamping range from 2mm - 32mm, 1/8" to 1- 1 1/4"
  • Integrated coolant through with MQL adaptation possible
  • Fast tool change due to collet system
  • Each holder is balanced with G 2,5 up to 20.000 Rpm
  • Maintenance free design


Features:

  • Hollow taper shank acc. DIN 69893-1
  • Concentricity ≤ 3 μm at projection length of 3 x dia.
  • Internal coolant supply


Specifications:

HSK-A63
EDP/Item No. SIZE D2 (RANGE) (inch) D2 (RANGE) (mm) Design
6492.631409 FPC14 1/8" - 9/16" 2 mm - 14 mm A
6492.631414 FPC14 1/8" - 9/16" 2 mm - 14 mm A
6492.631417 FPC14 1/8" - 9/16" 2 mm - 14 mm A
6492.632009 FPC20 1/8" - 3/4" 2 mm - 20 mm B
6492.632014 FPC20 1/8" - 3/4" 2 mm - 20 mm B
6492.632017 FPC20 1/8" - 3/4" 2 mm - 20 mm B
6492.632513 FPC25 5/8" - 1-1/4" 16 mm - 32 mm C



HSK-A80
EDP/Item No. SIZE D2 (RANGE) (inch) D2 (RANGE) (mm) Design
6492.802009 FPC20 1/8" - 3/4" 2 mm - 20 mm B
6492.802513 FPC25 5/8" - 1-1/4" 16 mm - 32 mm C



HSK-A100
EDP/Item No. SIZE D2 (RANGE) (inch) D2 (RANGE) (mm) Design
6492.102010 FPC20 1/8" - 3/4" 2 mm - 20 mm A
6492.102018 FPC20 1/8" - 3/4" 2 mm - 20 mm A
6492.102514 FPC25 5/8" - 1-1/4" 16 mm - 32 mm C



HSK-F63
EDP/Item No. SIZE D2 (RANGE) (inch) D2 (RANGE) (mm) Design
6497.632009 FPC20 1/8" - 3/4" 2 mm - 20 mm B
