Dyer 652 Series Electronic "Longer Reach" Direct Reading O-Ring/Groove Gages

Brand:

Call for Pricing

(No reviews yet) Write a Review

Dyer Gage

Dyer 652 Series Electronic "Longer Reach" Direct Reading O-Ring/Groove Gages


Maximum Measuring Accuracy
Linear ± 0.002" (0.050 mm)
Repeatability ± 0.001" (0.025 mm)
Gage R & R capable


Notable Features:

  • Fast, accurate, repeatable
  • Light weight
  • SPC output for USB or Mitutoyo devices. Cables offered separately
  • Absolute and Relative modes with Min, Max and Hold programs
  • Tolerance limit markers with Green/Red LED for visual operator judgement
  • Internal memory that holds a maximum of 80 measured values
  • Programmable auto shut off for battery savings
  • IP 67. Gages are shop rugged
  • Analog segment (fan) display
  • Keypad lock
  • Wireless data option. Contact us with your requirement.


Specifications:

Item Number 652-105 652-106 652-108
Application Range 0.59" - 2.55"
15 - 65 mm
1.57" - 3.54"
40 - 90 mm
2.75" - 4.72"
70 - 120 mm

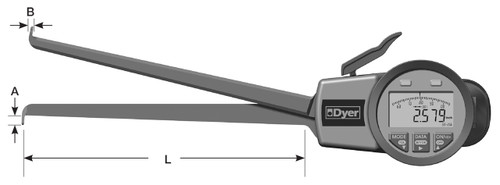

Measuring Depth L 7.4" / 188 mm 7.5" / 192 mm 7.5" / 192 mm
Groove Depth A 0.236" / 6.0 mm 0.33" / 8.5 mm 0.33" / 8.5 mm
Groove Width B 0.079" / 2.0 mm 0.098" / 2.5 mm 0.098" / 2.5 mm
Graduation 0.001" / 0.020 mm 0.001" / 0.020 mm 0.001" / 0.020 mm
Carbide Ball Diameter 0.059" / 1.5 mm 0.079" / 2.0 mm 0.079" / 2.0 mm



Item Number 652-110 652-112 652-114
Application Range 3.93" - 5.90"
100 - 150 mm
5.11" - 7.08"
130 - 180 mm
5.90" - 7.87"
150 - 200 mm
Measuring Depth L 7.5" / 192 mm 7.5" / 192 mm 7.5" / 192 mm
Groove Depth A 0.33" / 8.5 mm 0.33" / 8.5 mm 0.33" / 8.5 mm
Groove Width B 0.098" / 2.5 mm 0.098" / 2.5 mm 0.098" / 2.5 mm
Graduation 0.001" / 0.020 mm 0.001" / 0.020 mm 0.001" / 0.020 mm
Carbide Ball Diameter 0.079" / 2.0 mm 0.079" / 2.0 mm 0.079" / 2.0 mm
