Defelsko PosiTector 6000 Coating Thickness Gages with NRS Probe

Brand:

Call for Pricing

(No reviews yet) Write a Review

Defelsko PosiTector 6000 Coating Thickness Gages with NRS Probe


APPLICATION: Non-Conductive coating on Non-Ferrous Metals (Aluminum, Copper etc.)

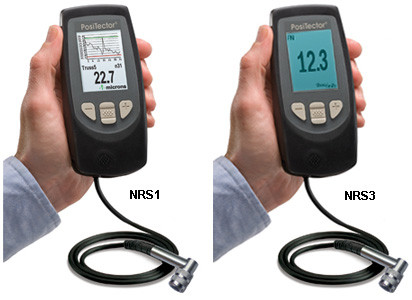

The PosiTector 6000 NRS1 includes a Standard(1) gage body and a removable NRS probe for measuring non-conductive coatings on non-ferrous metal substrates (aluminum, copper, etc.). Ideal for measuring in areas of low headroom.

The PosiTector 6000 NRS3 includes a Advanced(3) gage body and a removable NRS probe for measuring non-conductive coatings on non-ferrous metal substrates (aluminum, copper, etc.). Ideal for measuring in areas of low headroom.


Click for Probe Details / Ordering Guide


Simple:

  • Ready to measure-no calibration adjustment required for most applications
  • One-Handed menu navigation
  • Bi-color indicator light-ideal in a noisy environment
  • RESET feature instantly restores gauge to factory settings

Durable:

  • Solvent, acid, oil, water and dust resistant - weatherproof
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster with belt clip
  • Two (2) year warranty on gage body and probe.

Accurate:

  • Certificate of Calibration showing traceability to NIST included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases gages displayed resolution for use on applications that require greater precision
  • Conforms to national and international standards including ISO and ASTM

Versatile:

  • Fully interchangeable probes are compatible with ALL gage bodies Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
  • Selectable display languages
  • Hi Contrast backlit display for bright or dark environments
  • Flip display enables right-side-up viewing
  • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
  • Uses alkaline or rechargeable batteries (built-in charger)



Feature Comparison Chart Standard(1) Advanced(3)
Order Code NRS1 NRS3
Included Probe NRS NRS
Accepts all PosiTector 6000 probes X X
All features shown on Overview page X X
Hi Contrast reversible color LCD   X
FAST mode - faster measurement speed for quick inspection X X
SCAN Mode - take continuous readings without lifting the probe   X
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits X X
Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring X X
Reading Storage Capacity 250 in one group 100,000 in up to 1000 groups
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included X X
USB mass storage - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required X X
Connects to PosiTector.net X X
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels   X
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings   X
Wireless Technology for data transfer to a PC or optional portable printer   X
Real Time Graphing   X
Onscreen help, picture prompting and batch notes   X
Multiple stored calibration adjustments for measuring on a variety of substrate conditions   X
Two (2) Year Warranty on Gage and Probe X X



NRS Probe (included)
positector-6000-nrs-probe.jpg Range: 0 - 1500 um
0 - 60 mils
Accuracy*: + (0.05 mils + 1%)   0 - 2 mils
+ (0.1 mils + 1%)   > 2 mils
+ (1 um + 1%)   0 - 50 um
+ (2 um + 1%)   > 50 um
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.



Comes complete with Standard(1) gage body, NRS probe, precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.

Size: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1")

Weight: 140 g (4.9 oz.) without batteries

CONFORMS TO: ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others
