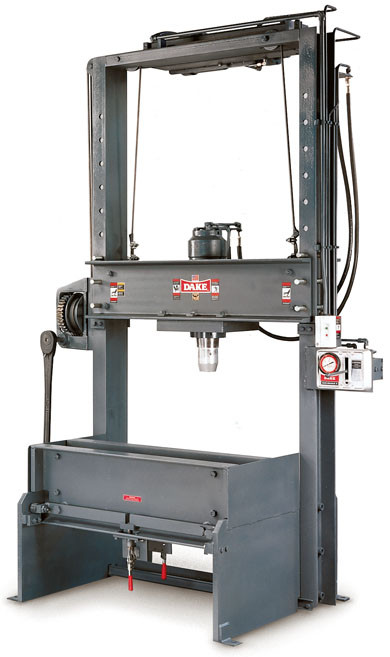

Dake Hydraulic Presses, Movable Table
- Table rolls out to load heavy or awkward work, then returns easily into pressing position
- Movable table allows overhead loading of heavy workpieces
- Heavy-duty hoist easily raises and lowers workhead
- Optional table plates
- Adjustable workhead height provides maximum daylight for oversized work
- Toggle clamps lock table securely in place
- Optional V-blocks
Specifications:
| Model | 42-300 | 42-400 | 42-500 | 42-304 |
| number | 942300 | 942400 | 942500 | 942304 |
| operation | air | elec-draulic I | elec-draulic II | air |
| capacity (tons) | 25 | 25 | 25 | 50 |
| table (lbs) | 3,500 | 3,500 | 3,500 | 3,500 |
| ram speed-advance | 110 | 80 | n/a | 65 |
| ram speed-press | 6* | 14 | 15 | 3* |
| ram speed-return | n/a | n/a | 35 | n/a |
| horsepower | n/a | 2 | 2 | n/a |
| A width between uprights | 32-3/4 | 32-3/4 | 32-3/4 | 32-3/4 |
| B width between table channels | 7-1/4 | 7-1/4 | 7-1/4 | 7-1/4 |
| C minimum ram to table | 7 | 7 | 12-1/4 | 10-7/8 |
| D maximum ram to table | 37 | 37 | 42-1/4 | 40-7/8 |
| E ram travel | 10 | 10 | 10 | 10 |
| H Table Travel | 22 | 22 | 22 | 22 |
| I floor to table top | 30 | 30 | 30 | 30 |
| J x K base (inches) | 37 x 43 | 37 x 43 | 37 x 43 | 43 x 37 |
| L height (inches) | 100 | 104 | 110 | 108 |
| weight (lbs) | 1,350 | 1,450 | 1,275 | 1,500 |
| Model | 42-401 | 42-501 | 42-308 | 42-402 |
| number | 942401 | 942501 | 942308 | 942402 |
| operation | elec-draulic I | elec-draulic II | air | elec-draulic I |
| capacity (tons) | 50 | 50 | 75 | 75 |
| table (lbs) | 3,500 | 3,500 | 3,800 | 3,800 |
| ram speed-advance | 40 | n/a | 45 | 28 |
| ram speed-press | 7 | 8 | 2* | 5 |
| ram speed-return | n/a | 22 | n/a | n/a |
| horsepower | 2 | 2 | n/a | 2 |
| A width between uprights | 32-3/4 | 32-3/4 | 44 | 44 |
| B width between table channels | 7-1/4 | 7-1/4 | 8-1/4 | 8-1/4 |
| C minimum ram to table | 10-7/8 | 14 | 11-3/4 | 11-3/4 |
| D maximum ram to table | 40-7/8 | 44 | 41-3/4 | 41-3/4 |
| E ram travel | 10 | 10 | 10 | 10 |
| H table travel | 22 | 22 | 22 | 22 |
| I floor to table top | 30 | 30 | 30 | 30 |
| JxK base (inches) | 43x37 | 43x37 | 47x52 | 47x52 |
| L height (inches) | 108 | 114 | 110 | 110 |
| weight (lbs) | 2,200 | 2,200 | 2,450 | 2,650 |
| Model | 42-502 | 42-312 | 42-403 | 42-503 |
| number | 942502 | 942312 | 942403 | 942503 |
| operation | elec-draulic II | air | elec-draulic I | elec-draulic II |
| capacity (tons) | 75 | 150 | 150 | 150 |
| table (lbs) | 3,800 | 4200 | 4200 | 4200 |
| ram speed-advance | n/a | 25 | 16 | n/a |
| ram speed-press | 5 | 1* | 2-3/4 | 17 |
| ram speed-return | 15 | n/a | n/a | 38 |
| horsepower | 2 | n/a | 2 | 10 |
| A width between uprights | 44 | 48 | 48 | 48 |
| B width between table channels | 8-1/4 | 12-1/4 | 12-1/4 | 12-1/4 |
| C minimum ram to table | 13 | 14-1/4 | 14-1/4 | 15-1/2 |
| D maximum ram to table | 43-3/8 | 64-1/4 | 64-1/4 | 65-1/2 |
| E ram travel | 10 | 16 | 16 | 16 |
| H table travel | 22 | 30 | 30 | 30 |
| I floor to table top | 30 | 34 | 34 | 34 |
| JxK base (inches) | 47x52 | 58x56 | 58x56 | 58x56 |
| L height (inches) | 116 | 145 | 145 | 150 |
| weight (lbs) | 2,950 | 3,660 | 4,700 | 4,700 |
