Clausing EQUIPTOP Automatic Surface Grinder - CSG618A

Brand:

(No reviews yet) Write a Review
SKU:
CSG618A

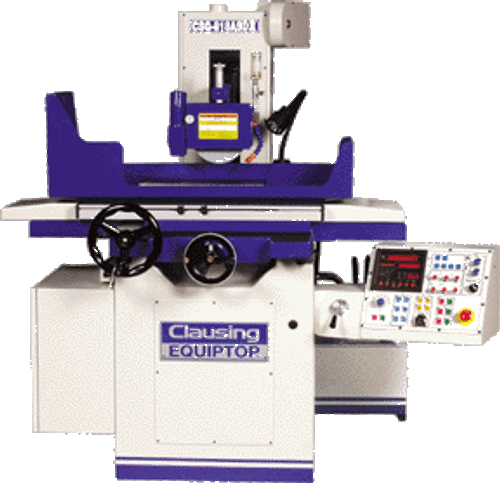

Clausing EQUIPTOP Automatic Surface Grinder

Features:

  • Vertical feed powered by dual motors, AC motor for rapid

  • up / down and stepping motor for micro downfeed positioning, slow auto downfeed and slow up / down

  • Cross transverse travel powered by DC servo motor, allows step feed and continuous infeed grinding

  • Wide, deep base and honeycomb ribbed column on 10, 12, &16 series, designed for heavy-duty grinding

  • High quality, ribbed, cast iron table, saddle and base

  • All slideways and screws are fully oiled by an automatic continuous lubrication system to minimize wear on slideways & screws

  • High Grade Anti-Wear Slideways...The saddle rides on precision, hand-scrapped double V ways, and the table rides on precision hand-scraped V and flat ways coated with “TURCITE-B”.

  • Precision spindle cartridge, supported by preloaded precision angular contact ball bearings and one NN type roller bearing on 618 & 818 models

  • Presettable hydraulic table speed control allows operator to

  • pre-set speed rate, so you can have the same speed rate every time the hydraulic table is engaged (10, 12, 16, series)

  • Ballscrew for cross travel, powered by DC servo motor

ASDII Series Optional Accessories:

  • Permanent Magnetic Chuck

  • Electro Magnetic Chuck

  • Inclinable Permanent Magnetic Chuck

  • Coolant System

  • Coolant System with Magnetic Separator

  • Dust Collector

  • Coolant and Dust Unit

  • Coolant System with Manual Paper Feeding

  • Auto Paper Feeding Device with Magnetic Separator

  • Splash Guard

  • Full Splash Guard (10/12/16 series)

  • Electro Parallel Dressing Attachment

  • Manual Parallel Dressing Attachment

  • Adjustable Speed Rotary Magnetic Chuck

  • Dynamic Balancer

  • Punch Former

  • Spare Wheel Flange

  • Balancing Stand (Double Line)

  • Roller Type Balancing Stand

  • Micro Crossfeed

  • Manual Pulse Generator for ASDII

  • Precision Vice

  • Frequency Charger

  • Swivel Wheel Guard

  • Concave/Convex Forming Dresser

ASDII Series Control Panel Features...

  • Quick digital output feedback by encoder

  • Simple touch control panel with digital display

  • Use digital display for setting start points, rough grinding volume, finish grinding volume, down feed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out

Click Here For Specifications

6" x 18" Automatic Surface Grinder CSG618ASDII
